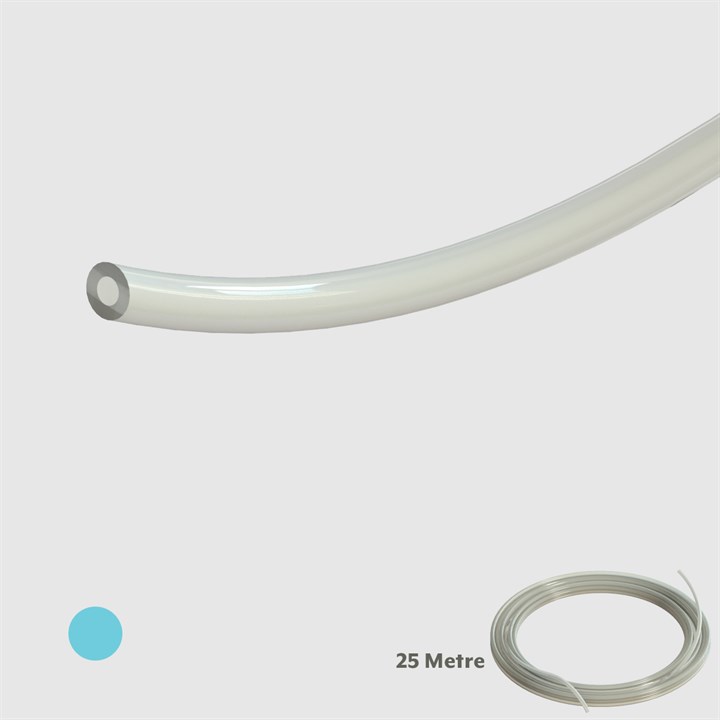

Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M - Compatible with Blue Dot Fittings

Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M - Compatible with Blue Dot Fittings

E-T-160118

Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M - Compatible with Blue Dot Fittings

Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M
Compatible blue dot fittings
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-T-160118

Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M - Compatible with Blue Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Translucent Platinum Cured Silicone Tubing, 60 Shore A, 0.248" (6.3mm) ID x 3/8" (9.5mm) OD - 25M

Extended Description 25 Metre coil (82 Feet) of translucent platinum cured Silicone tubing with an internal diameter of 0.248" (6.3mm), an outside diameter of 3/8" (9.5mm) and a wall thickness of 1/16" (1.6mm) suitable for use with barb style fittings

Non-Wetted Materials Platinum Cured Silicone

Wetted Materials Platinum Cured Silicone

Cleanroom Manufactured Uncontrolled environment

Temperature Range -40°C to 200°C (-40°F to 392°F)

Diameter Tolerance ±0.010" (±0.25mm) ID/±0.006" (±0.15mm) OD

Item Weight 0.74Kg (1.62lbs)

ROHS Compliant Yes

Regulatory Information WRAS approval for hot and cold water, FDA 21 CFR 177.2600, BfR compliant, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Other Technical Data Platinum cured Silicone gives you a number of advantages over conventional peroxide cured Silicones including: Non-Yellowing, No Peroxide by-products, High tear strength as standard, High gloss finish, Excellent clarity, Highly hydrophobic, Extended life in Peristaltic pumps

Durometer 60 Shore A

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
