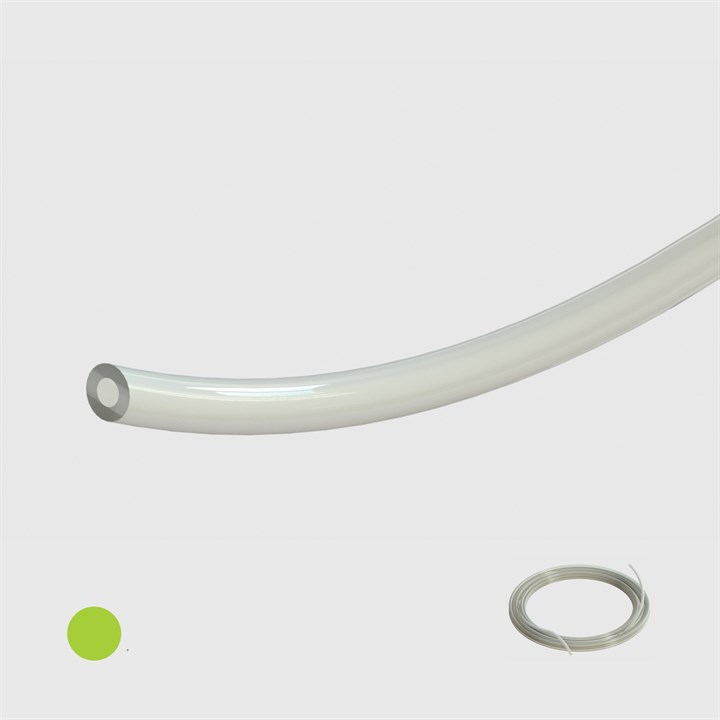

Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

E-T-240018

Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings
Compatible green dot fittings
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-T-240018

Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Natural Kynar Tubing, 65 Shore D, .170" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

Extended Description Kynar tubing is compatible with both push-in style fittings and compression fittings, ensuring a secure and reliable connection in a variety of systems. Kynar tubing offers exceptional chemical resistance, particularly to halogens, acids, and a wide range of organic solvents. It is also resistant to UV radiation and provides long-term durability in outdoor environments. Kynar is commonly used in chemical processing, water treatment, semiconductor manufacturing, and pharmaceutical industries. Additionally, its high purity and low extractables make it suitable for food and beverage applications, as well as in laboratories and medical devices where cleanliness is critical.

Non-Wetted Materials Kynar

Wetted Materials Kynar

Temperature Range -40 to 356°C (-40 to 180°F)

Working Pressure 4:1 Safety Factor

Diameter Tolerance ±0.005" (0.127mm) ID/OD

Item Weight 0.9207kg (920.7g)

ROHS Compliant Yes

Regulatory Information FDA 21 CFRR 177.2600, USP Class VI, NSF 51, UL 94 V0, Califonia Prop, 65

REACH Compliant Yes

Other Technical Data Phthalates free. DEHP free. Animal derivative free. Latex fee. Compatible with gamma radiation or ozone sterilisation method. Resist fungal growth per MS 810B, method 508 testing. For further information please contact us on +44 (0)2392 266031

Durometer 65 Shore D

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
