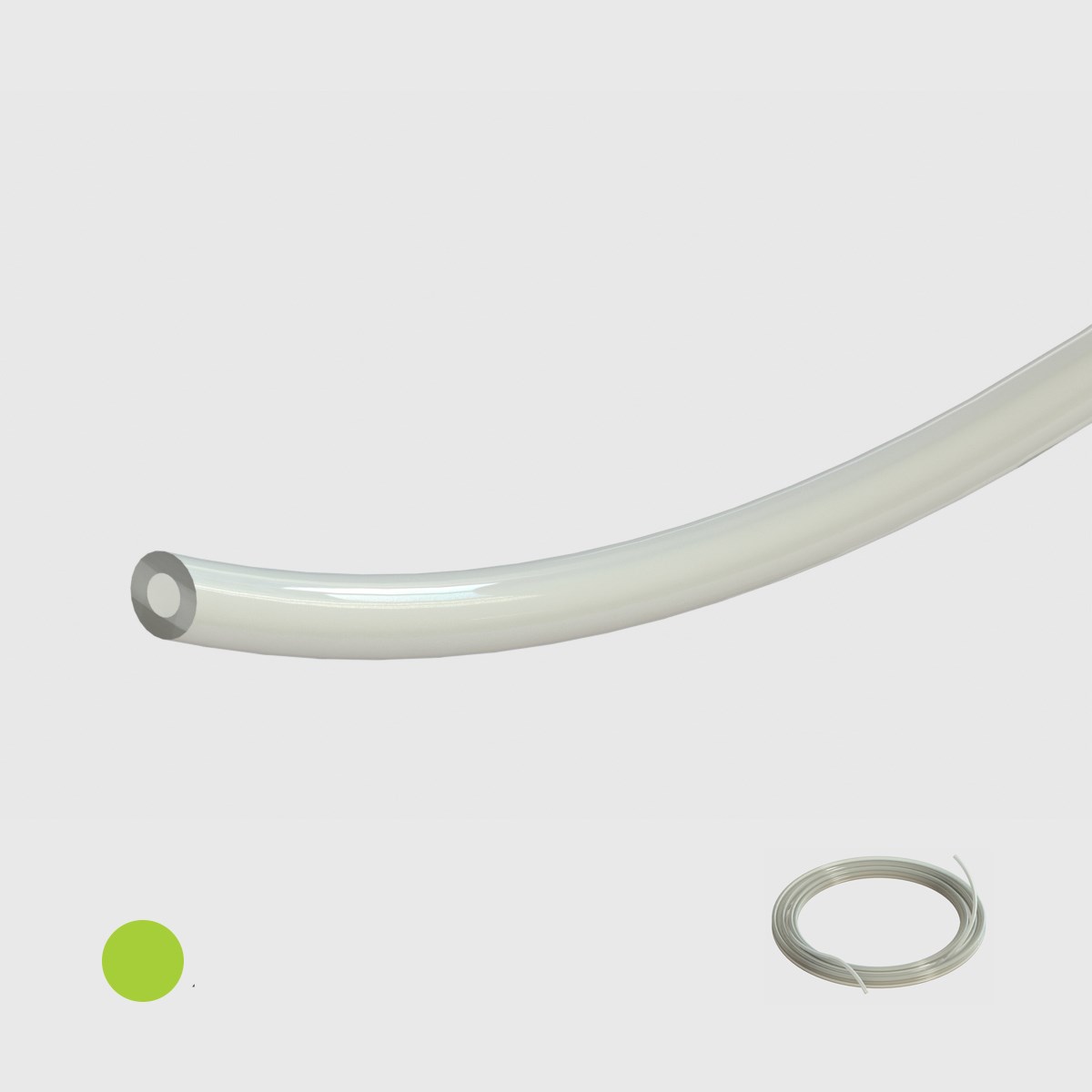

Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings

Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings

E-T-240030

Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings

Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings
Compatible green dot fittings
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-T-240030

Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 8.0mm ID x 10.0mm OD - 30M - Compatible with Green Dot Fittings

Extended Description Fluorinated Ethylene Propylene (FEP) tubing is compatible with both push-in style fittings and compression fittings, ensuring a secure and reliable connection in a variety of systems. Fluorinated Ethylene Propylene (FEP) tubing is highly resistant to chemicals, making it ideal for handling aggressive solvents, acids, and bases. It can also be used with gases, compressed air, and various fluids in both low and high-temperature environments. Common applications include chemical processing, laboratory equipment, food and beverage processing, semiconductor manufacturing, and medical devices. Its non-stick surface and excellent transparency make it perfect for fluid transfer and monitoring in these applications

Non-Wetted Materials Fluorinated Ethylene Propylene (FEP)

Wetted Materials Fluorinated Ethylene Propylene (FEP)

Temperature Range -73 to 204°C (0 to 400°F)

Working Pressure 5:1 Safety Factor

Diameter Tolerance ±0.005" (0.127mm) ID/OD

Item Weight 1.8597kg (1859.7g)

ROHS Compliant Yes

Regulatory Information FDA Food Contact, UL 94 V0, USP Class VI, ASTM D 3296-04

REACH Compliant Yes

Other Technical Data This high-performance, 100% virgin-grade resin is engineered to resist stress cracking, offering excellent thermal stability and low permeability. It features strong UV resistance, is non-flammable or self-extinguishing, and provides superior electrical insulation. Additionally, the resin is chemically inert, making it resistant to most industrial chemicals and solvents. For further information please contact us on +44 (0)2392 266031

Durometer 57 Shore D

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
