Your partner in medical and life science fluid components and solutions

Introducing our EBF Range of Fittings

This product incorporates a specially engineered groove design that complements the O-ring seal, resulting in a highly effective and leak-tight joint. Together, the groove design and O-ring work seamlessly to ensure superior sealing performance for this product.

O-rings are available in multiple materials, including EPDM, Nitrile, Silicone, and Viton (FKM). Moreover, this product offers the option of being supplied complete with an orifice restrictor insert ranging from 0.004" to 0.018" or a filter with micron ratings from 5 to 40.

The innovative Standard Barb design is optimised for the easy manual insertion of softer tubing onto the fitting ranging from 50 to 85 Shore A. This maintains excellent gripping strength and guarantees a secure connection at the tubing interface, effectively preventing any potential leaks. We also have the option of Easy Barb which is recommended for our tubing ranging from 90 to 95 Shore A



EBF Product Overview

  • 316 Stainless Steel

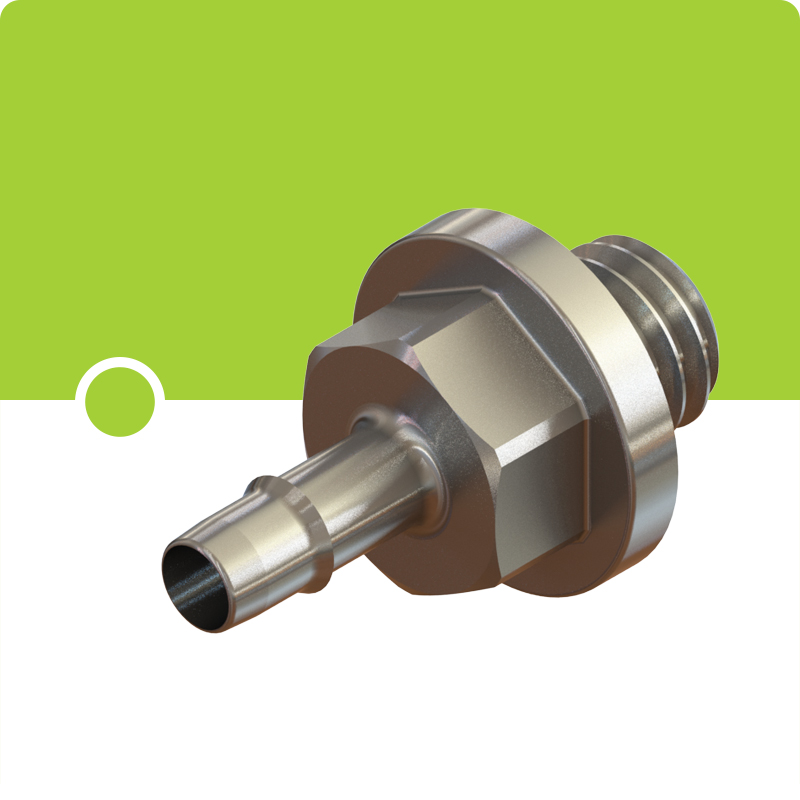

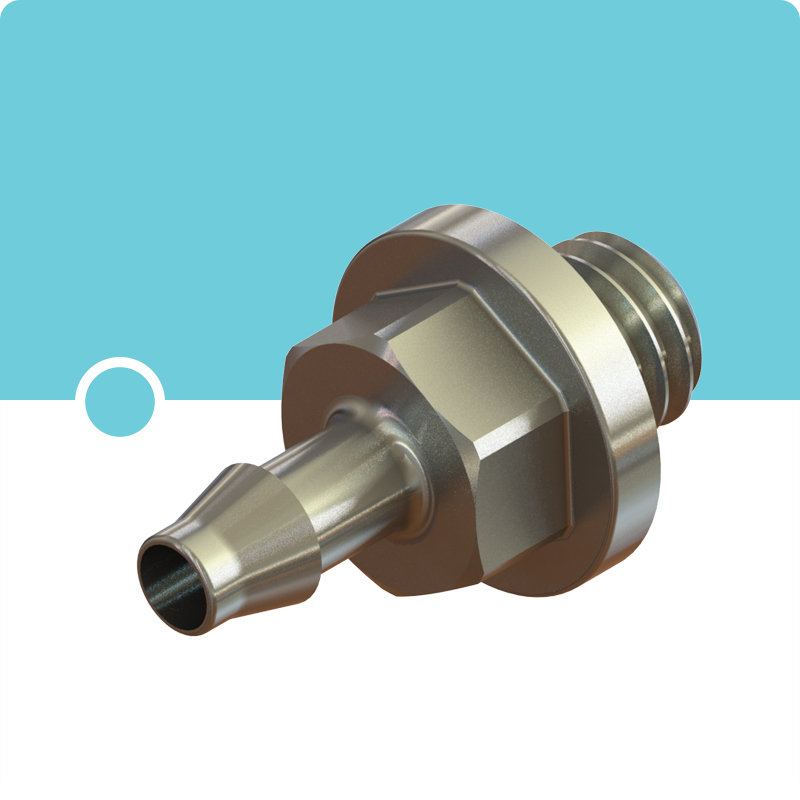

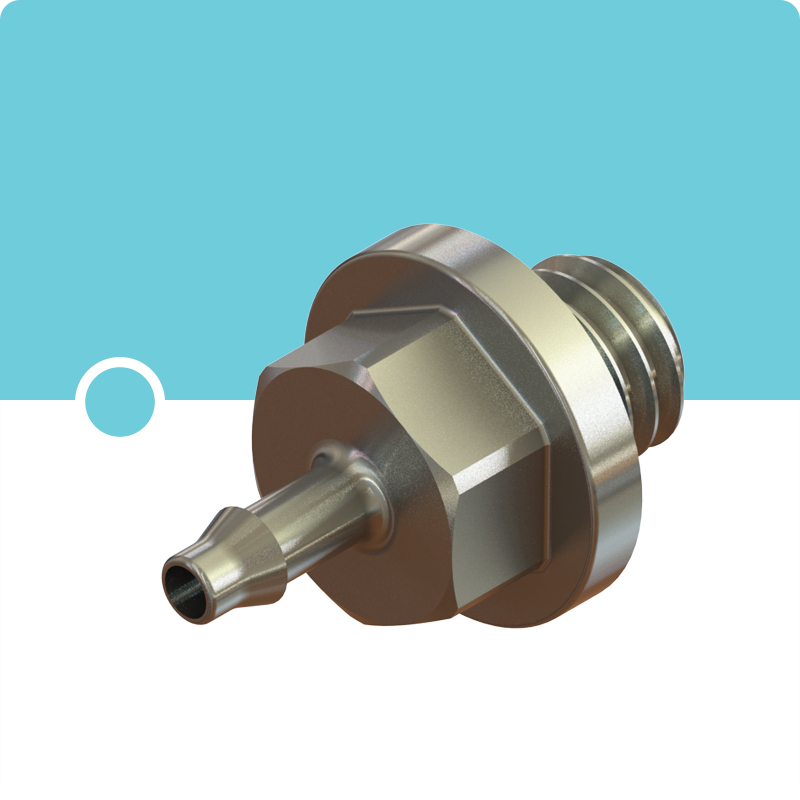

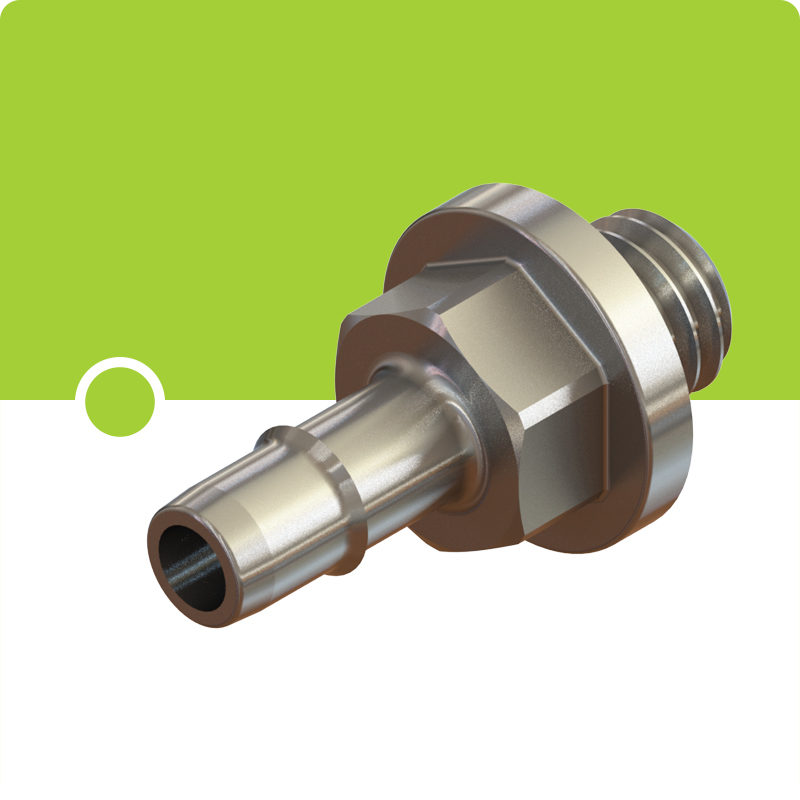

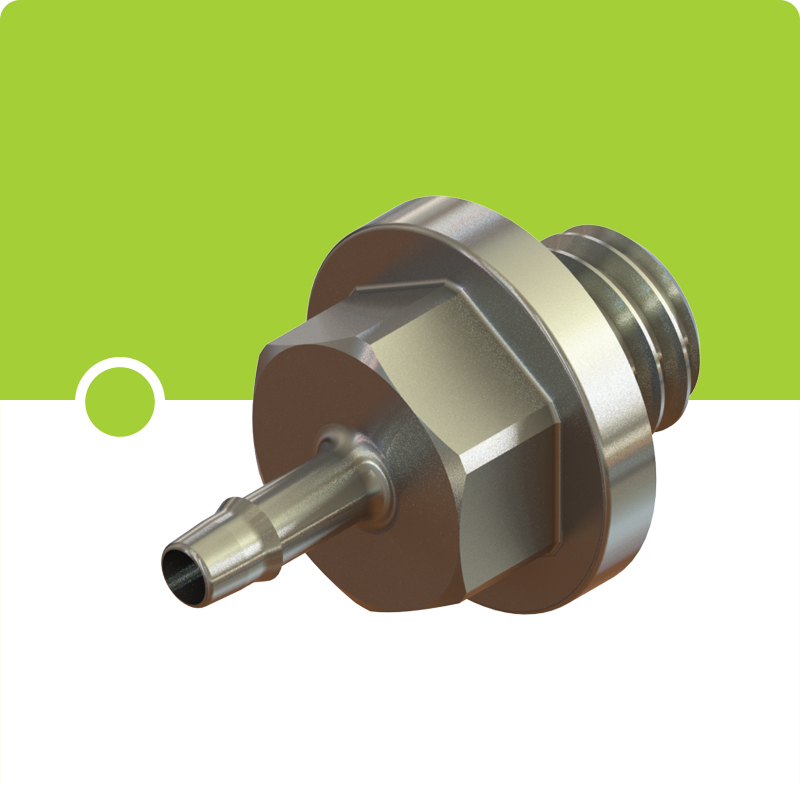

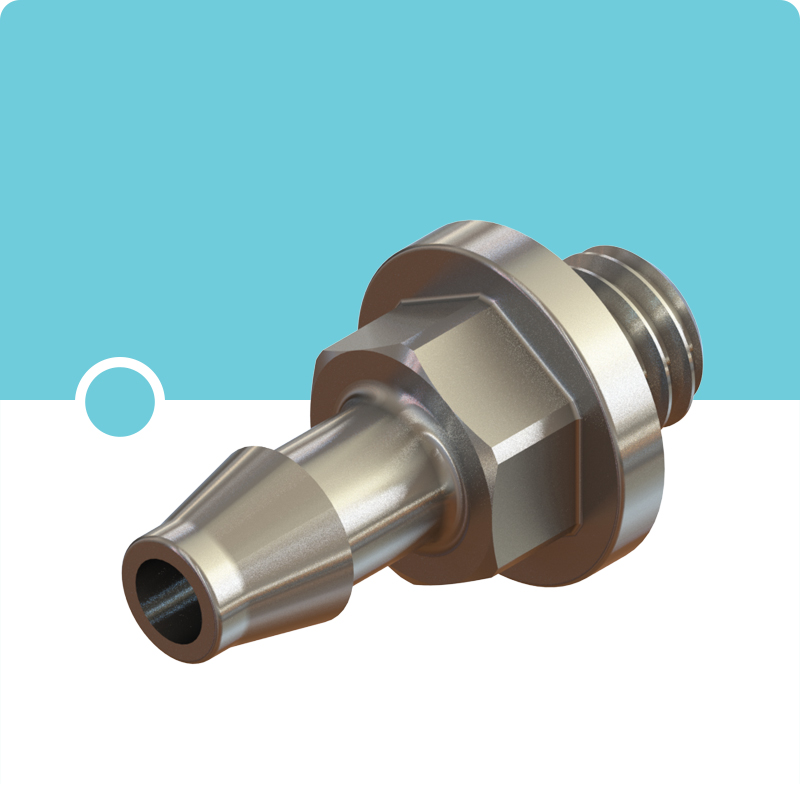

  • Easy Barb & Standard Design
  • 1/16", 3/32" & 1/8" to 10-32 UNF
  • Standard with Viton O-ring
  • Unique groove design


  •

    Find the perfect match between fitting & tube

    Standard Barb - recommended for our blue dot tubing range 50 to 85 Shore A and Our Easy Barb range is recommended for our green dot tubing range 90 to 95 Shore A






















    Contact us for more information

    This product offers the option of being supplied complete with an orifice restrictor insert ranging from 0.004" to 0.018" or a filter with micron ratings from 5 to 40 - Click here to send us an enquiry
