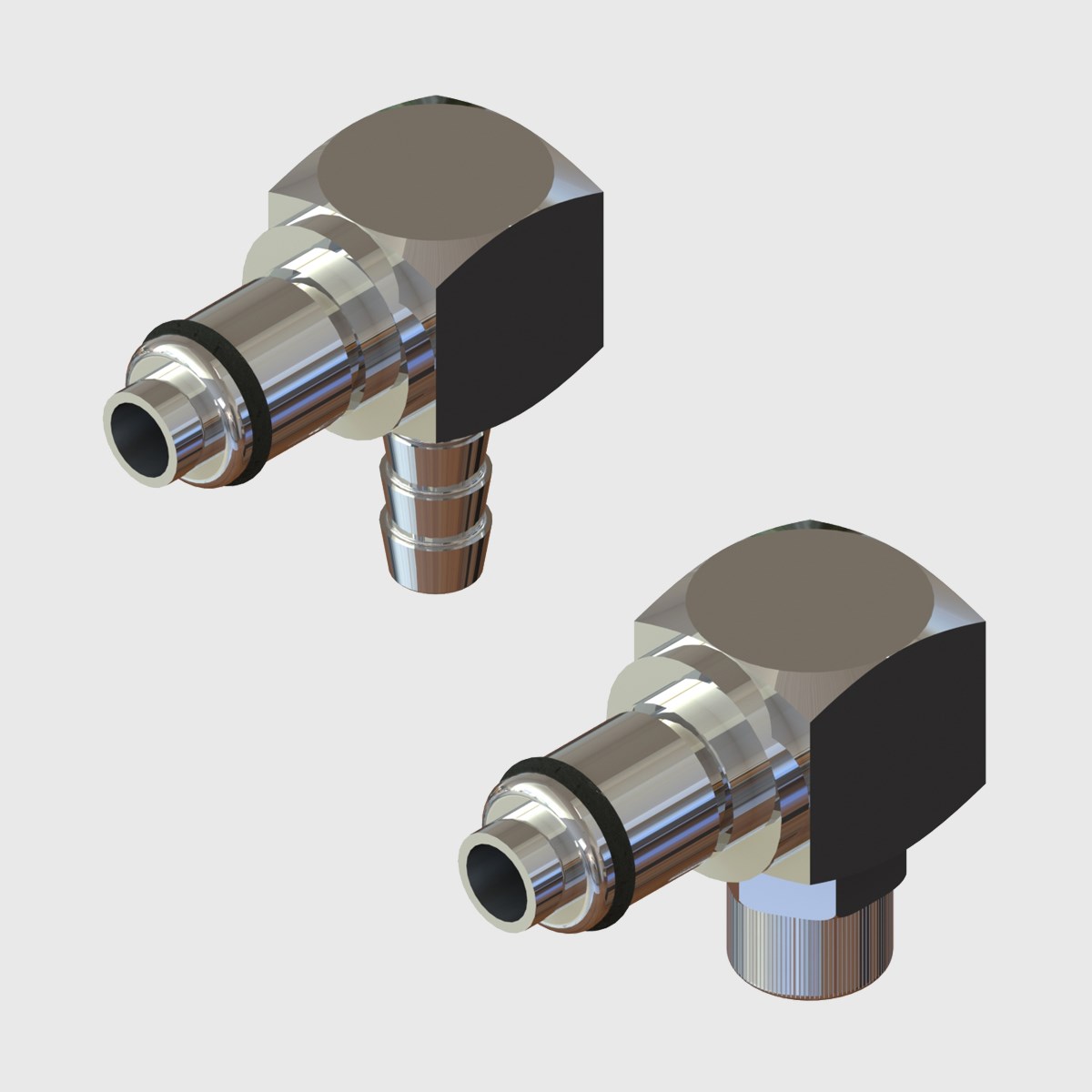

Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series

Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series

E-Q-160689

Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series

Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-Q-160689

Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/4" Flow - Q4 Series

Extended Description 1/4" flow size plug coupling in food grade chrome plated brass, which is more durable and can withstand higher pressure than its plastic equivalent. For connection to audible click thumb-latch mating socket coupling

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style In-Line

Connection 1 To mating Q4 Socket Connector

Connection 2 PTF (Poly Tube Fitting) for 6.4 mm (1/4") OD, 4.3 mm (0.17") Semi-rigid Tube

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass

Wetted Materials Chrome Plated Brass, Buna-N, DuPont™ Delrin® Acetal (POM) copolymer, 316 Stainless Steel

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0390Kg (39g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Clean Room, Non-Certified

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
