Product Information
Downloads
Sample request
Product Enquiry

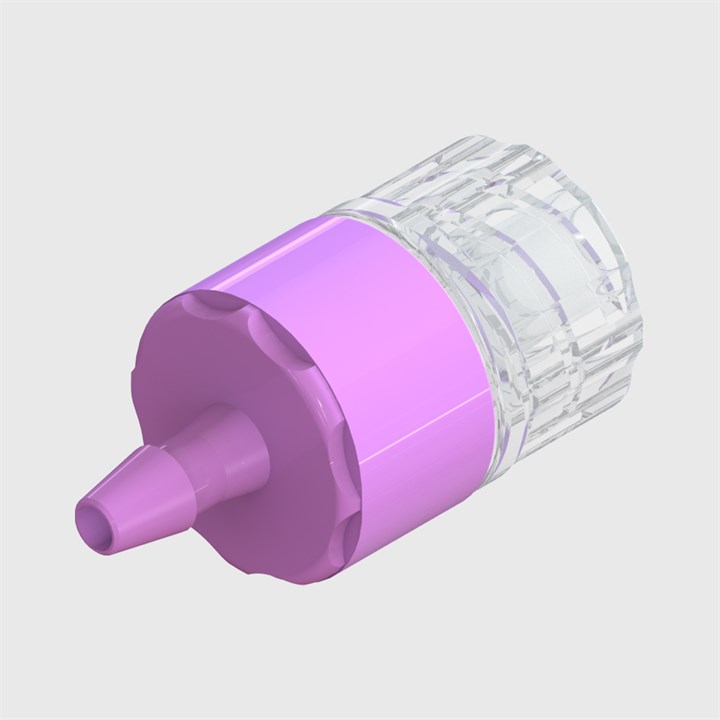

Description ABS Bodied Check Valve, Silicone Disc, 2.4mm (3/32") ID Tube to Male Luer Lock, Cracking Pressure ≤ 8 mbar

Extended Description Polystyrene/ABS check valve with Silicone Disc. Male luer inlet and 3/32" barb outlet. ≤ 8 mbar cracking pressure. 29 psi (2 bar) back pressure

Mounting Style In-line

Connection 1 To suit 2.4 mm (3/32") ID Tube

Connection 2 Male Luer Lock

Non-Wetted Materials ABS

Wetted Materials ABS, Polystyrene, Silicone

Cleanroom Manufactured Class 8 (100,000) cleanroom

Item Weight 0.0029Kg (2.9g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict Mineral Compliant. DEHP Free. Animal derivative Free. Human derivative Free. BPA Free. Phthalate Free. Latex Free. Compatible with EtO(Ethylene Oxide) sterilization, but is not compatible with autoclave or gamma sterilization. The ISO 80369-7 series of standards aims to minimize misconnections between small bore connectors of different functional categories. ISO 80369-7 specifically addresses intervascular and hypodermic applications. For further information please contact us on +44 (0)2392 266032

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
