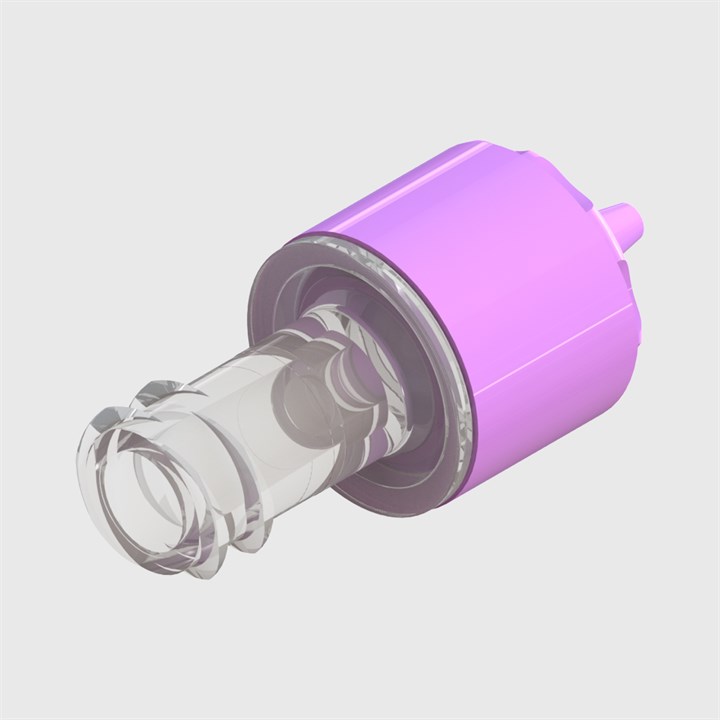

ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc

ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc

E-C-190010

ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc

ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-C-190010

ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description ISO 80369-7 Check Valve, 1/16" Barb to Female Luer Lock, ABS Body with Polystyrene & Silicone Disc

Extended Description Polystyrene/ABS check valve with Silicone disc. Female luer inlet and 1/16" barb outlet. ≤ 8 mbar cracking pressure

Mounting Style In-line

Connection 1 Female Luer Lock

Connection 2 To suit 1.6 mm (1/16") ID Tube

Non-Wetted Materials ABS

Wetted Materials ABS, Polystyrene, Silicone

Cleanroom Manufactured Class 8 (100,000) cleanroom

Item Weight 0.0029Kg (2.9g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict Mineral Compliant. DEHP Free. Animal derivative Free. Human derivative Free. BPA Free. Phthalate Free. Latex Free. Compatible with EtO (Ethylene Oxide) sterilisation, but is not compatible with autoclave or gamma sterilisation. This product is compliant to either ISO 594 and ISO 80369-7. The ISO 80369-7 series of standards aims to minimise misconnections between small bore connectors of different functional categories. ISO 80369-7 specifically addresses intervascular and hypodermic applications. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

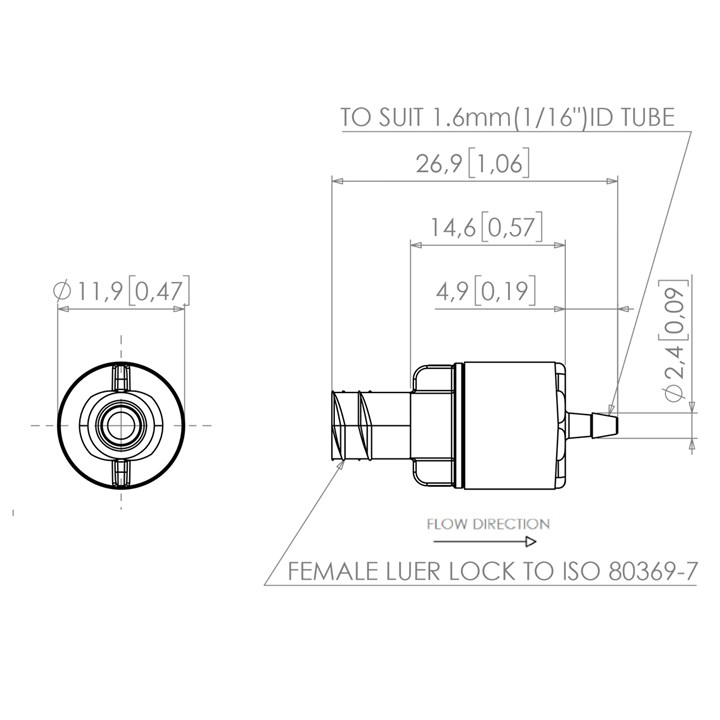

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
