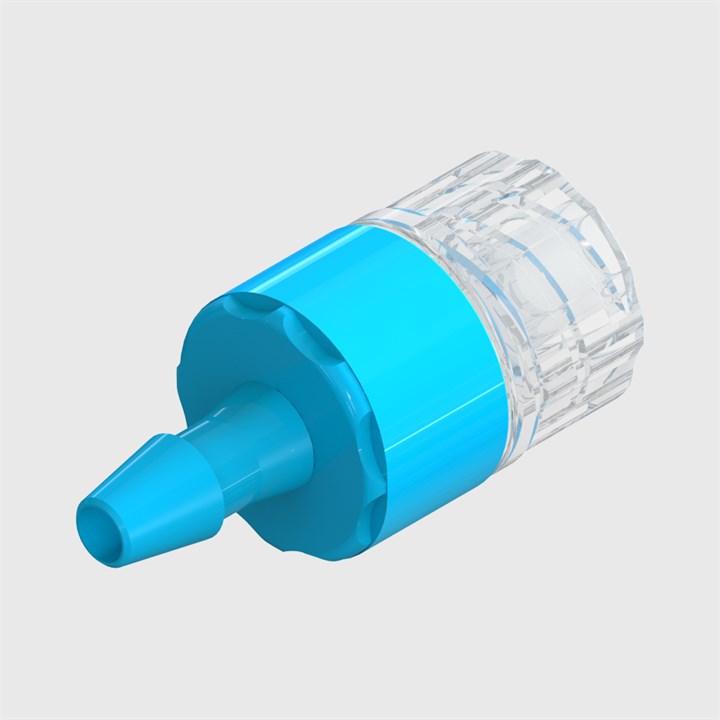

ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter

ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter

E-C-190015

ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter

ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-C-190015

ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description ISO 80369-7 Filtered Check Valve, 1/8" (3.2mm) Barb to Male Luer Lock, ABS Body with Polystyrene, Silicone Disc and Glass Fibre Filter

Extended Description An ISO 80369-7 filtered check valve with an ABS housing and a Polystyrene check valve body. Check Valve complete with Silicone disc, incorporating a 4.0mm diameter, 0.2 micron hydrophobic Glass Fibre disc with a filtration area of 12.5mm², held by an HDPE holder. Flow direction is from the barb for a 1/8" (3.2mm) ID tube to male luer lock. ≤ 8 mbar cracking pressure

Mounting Style In-Line

Connection 1 To suit 3.2 mm (1/8") ID Tube

Connection 2 Male Luer Lock

Non-Wetted Materials ABS

Wetted Materials ABS, Polystyrene, Silicone

Cleanroom Manufactured Class 8 (100,000) cleanroom

Item Weight 0.0030Kg (3g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict Mineral Compliant. DEHP Free. Animal derivative Free. Human derivative Free. BPA Free. Phthalate Free. Latex Free. Compatible with EtO (Ethylene Oxide) sterilisation and gamma sterilisation, but is not compatible with autoclave. The ISO 80369-7 series of standards aims to minimize misconnections between small bore connectors of different functional categories. ISO 80369-7 specifically addresses intervascular and hypodermic applications. For further information please contact us on +44 (0)2392 266033

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
