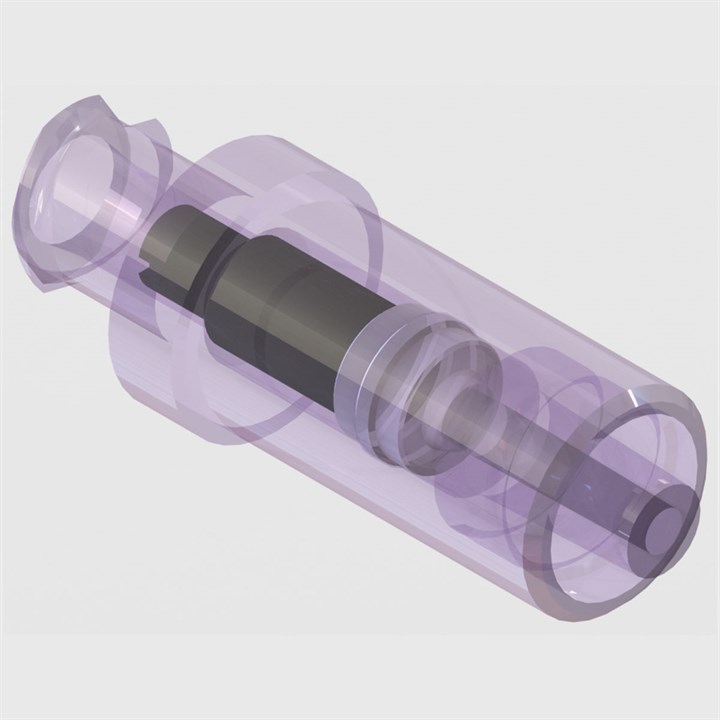

Luer Lock Access Needle Free Check Valve with Female/Male Luer Lock, Clear Gamma Polycarbonate

E-N-190050

Luer Lock Access Needle Free Check Valve with Female/Male Luer Lock, Clear Gamma Polycarbonate

Luer Lock Access Needle Free Check Valve with Female/Male Luer Lock, Clear Gamma Polycarbonate

Description Luer Lock Access Needle Free Check Valve with Female/Male Luer Lock, Clear Gamma Polycarbonate

Extended Description A Clear gamma grade Polycarbonate bodied luer lock access needle free check valve with female/male luer locks designed as a replacement for needle ports, they can be used for drug delivery/IV administration applications. These are used on a variety of balloon catheters such as endotracheal tubes, tracheostomy tubes, gastric feeding tubes and urethral catheters.

Ambient Temperature 0°C – 60°C (32°F – 140°F)

Mounting Style In-line

Connection 1 Female Luer Lock

Connection 2 Male Luer Lock

Recommended Filtration Not Applicable

Media Temperature 0°C – 60°C (32°F – 140°F)

Non-Wetted Materials Not Applicable

Wetted Materials Gamma Grade Polycarbonate, Silicone, Polypropylene

Cleanroom Manufactured No

Max. Inlet Pressure 1.38 bar (20 psi)

Cracking Pressure Valve Opened by Luer Connection

Item Weight 0.0020Kg (0.071oz)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data All materials are Gamma Resistant and Latex-free. Luer fittings are compatible with ANSI/HIMA MD70.1-83 & ISO 594. Valve stem and body will mate securely with all standard Luer syringes and Luer connectors. Product designedFor use in disposable applications.For further information please contact us on +44 (0)2392 266031.

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
