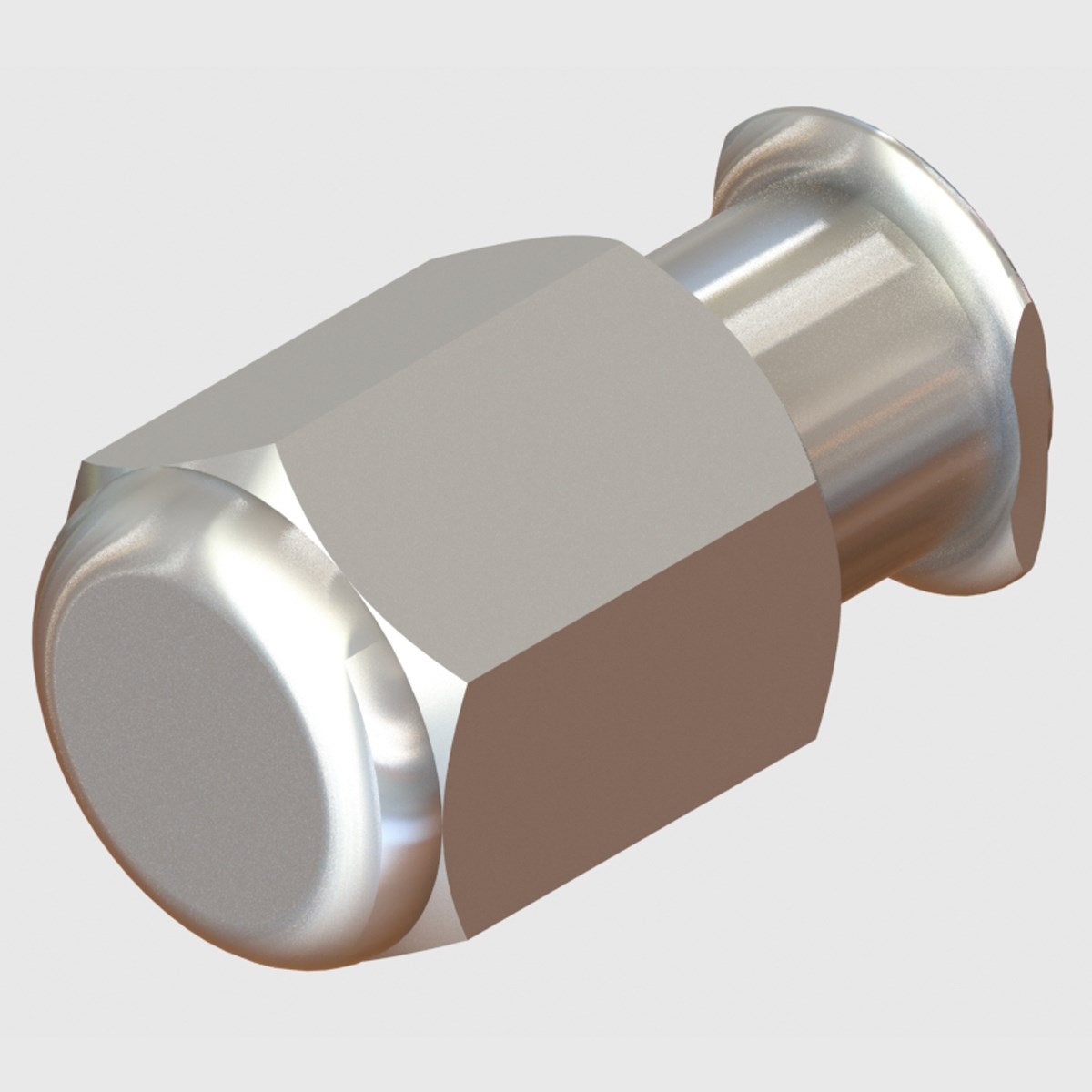

316 Stainless Steel Luer Plug, Female Slip Luer

316 Stainless Steel Luer Plug, Female Slip Luer

Name: 316 Stainless Steel Luer Plug, Female Slip Luer
SKU: E-F-171435
Price: 13.450000 GBP
Availability: OutOfStock

E-F-171435

316 Stainless Steel Luer Plug, Female Slip Luer

E-F-171435

BUY ONLINE

Product Details

Product Code E-F-171435

Product Name 316 Stainless Steel Luer Plug, Female Slip Luer

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description 316 Stainless Steel Luer Plug, Female Slip Luer

Extended Description A 316 Stainless Steel bodied luer plug with female slip luer

Ambient Temperature -40 to 200°C (-40 to 392°F)

Mounting Style In-Line

Connection 1 None - Closed End

Connection 2 Female Slip Luer

Media Temperature -40 to 200°C (-40 to 392°F)

Non-Wetted Materials 316 Stainless Steel

Wetted Materials 316 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure No Data Available – Sample Test for Suitability

Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594

Min Inlet Pressure Vacuum

Effective Orifice Size Not Applicable

Item Weight 0.0040Kg (4g)

ROHS Compliant Yes

Regulatory Information ISO 594

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
