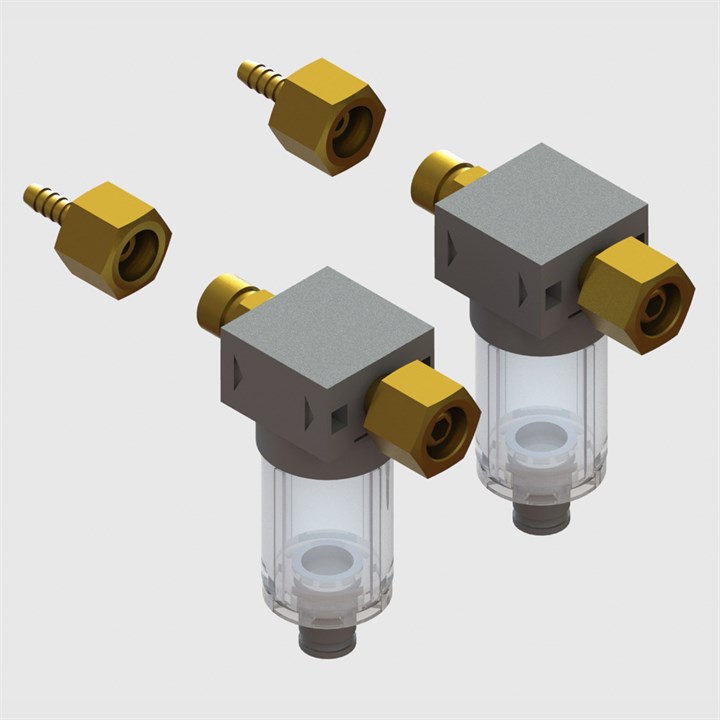

Pair of 20 Micron Inlet Filters

Name: Pair of 20 Micron Inlet Filters
SKU: NTC CFILT
Price: 181.410000 GBP
Availability: OutOfStock

NTC CFILT

Pair of 20 Micron Inlet Filters

NTC CFILT

BUY ONLINE

Product Details

Product Code NTC CFILT

Product Name Pair of 20 Micron Inlet Filters

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Pair of 20 Micron Inlet Filters

Extended Description Pair of 20 micron filters with semi-automatic drain. Supplied with adaptors for attachment to the full range of Pneuchange units

Ambient Temperature 0°C to 50°C (32°F to 122°F)

Mounting Style Direct to Pneuchange Unit or In-Line

Connection 1 G3/8" Male Coned Inlet R/H c/w Hosetails to Suit 6.4 mm (1/4") ID Tube

Connection 2 G3/8" Female R/H Outlet

Media Temperature 0°C to 50°C (32°F to 122°F)

Non-Wetted Materials Brass, Technopolymer, Polycarbonate

Wetted Materials Brass, Nickel Plated Brass, Steel, Technopolymer, Sintered HPPE, Cu-Alloy, Nitrile Rubber, Polycarbonate

Cleanroom Manufactured Controlled Environment

Max. Inlet Pressure 6.9 bar (100 psi)

Item Weight 0.2410 (8.50oz) each

ROHS Compliant Yes

CE Mark Yes

REACH Compliant Yes

Other Technical Data These units may be fitted at any point between the gas cylinders and the Pneuchange unit using appropriate alternative fittings. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
