Description Pneuchange Fitting Kit c/w 1/4" ID Tube, Fittings, Clips, Spanner, Driver

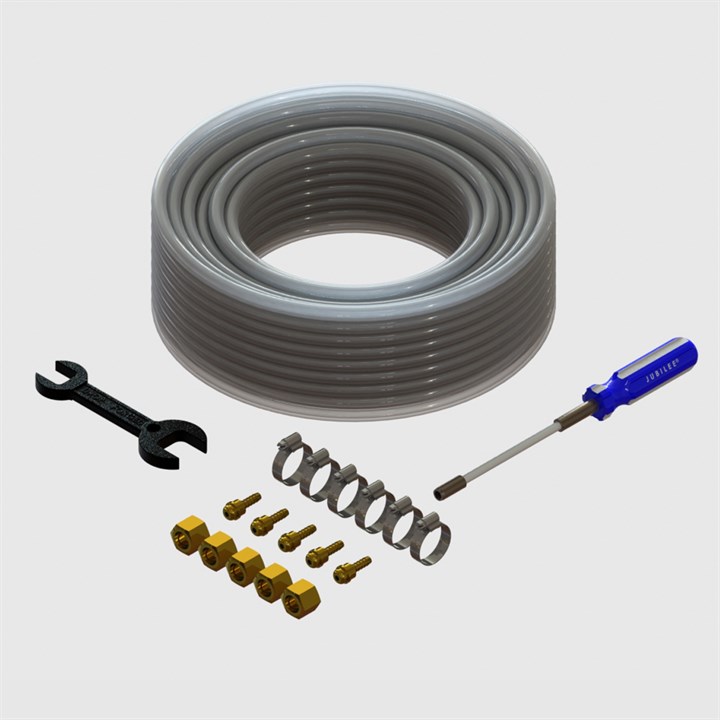

Extended Description Fitting kit includes 1 off 15m 1/4" ID Natural reinforced PVC braided tube, 1 off jubilee clip flexible driver, 1 off gas cylinder combination spanner, 6 off jubilee clips (9.5 mm - 12 mm), 5 off G3/8" right hand nuts, and 5 off coned hosetails for 1/4" ID tube

Ambient Temperature 20°C to 55°C (68°F to 130°F)

Mounting Style In-Line

Connection 1 G3/8" Nut and Coned Hosetail to suit 6.4 mm (1/4") ID Tube

Connection 2 G3/8" Nut and Coned Hosetail to suit 6.4 mm (1/4") ID Tube

Media Temperature 20°C to 55°C (68°F to 130°F)

Non-Wetted Materials Brass, Zinc Plated Mild Steel, Low Toxicity PVC, Polyester Yarn

Wetted Materials Brass, Low Toxicity PVC

Cleanroom Manufactured Uncontrolled Environment

Max. Inlet Pressure 8.3 bar (120 psi), based on working temperature of 40°C*

Item Weight 1.9800 (4.37lb)

ROHS Compliant Yes

CE Mark Yes

REACH Compliant Yes

Other Technical Data * Maximum pressure of the PVC braided hose varies with temperature, from 17.0 bar (250 psi) at 20°C to 4.25 bar (62.5 psi) at 55°C. For further information please contact us on +44 (0)2392 266031
