Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver

Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver

Name: Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver
SKU: NTC PCFT64
Price: 231.550000 GBP
Availability: OutOfStock

NTC PCFT64

Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver

NTC PCFT64

BUY ONLINE

Product Details

Product Code NTC PCFT64

Product Name Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Pneuchange Fitting Kit c/w 6 mm OD / 4 mm ID Tube, Fittings, Clips, Spanner, Driver

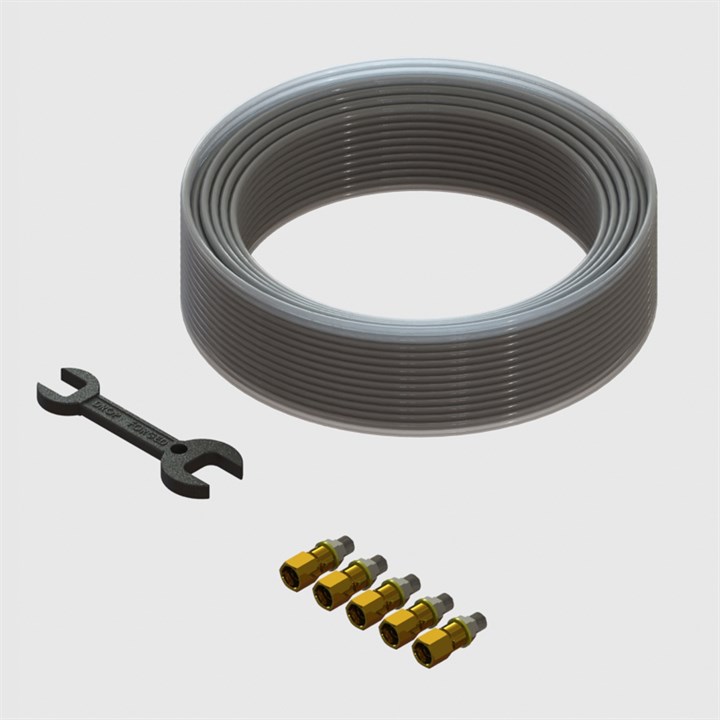

Extended Description Fitting kit includes 1 off 15 m coil 6 mm/4 mm OD/ID Polyurethane tube, 1 off gas cylinder combination spanner, and 5 off combination fitting to suit G3/8" coned female right hand and finger tight 6 mm/4 mm OD/ID PU tube

Ambient Temperature 0°C to 40 °C (32°F to 104 °F)

Mounting Style Direct to Pneuchange unit or In-Line

Connection 1 G3/8" Coned Female RH (when assembled)

Connection 2 G3/8" Coned Female RH (when assembled)

Media Temperature 0°C to 40 °C (32°F to 104 °F)

Non-Wetted Materials Brass, Mild steel, Polyoxymethylene

Wetted Materials Polyurethane, Brass, Polyoxymethylene, Mild Steel, Nitrile

Cleanroom Manufactured Uncontrolled Environment

Max. Inlet Pressure 10 bar (145 psi)

Item Weight 0.9500 (2.10lb)

ROHS Compliant Yes

CE Mark Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
