Bonded washer for PIN index yoke Brass / Viton

Bonded washer for PIN index yoke Brass / Viton

2544-2

Bonded washer for PIN index yoke Brass / Viton

Bonded washer for PIN index yoke Brass / Viton
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

2544-2

Bonded washer for PIN index yoke Brass / Viton

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Bonded washer for PIN index yoke Brass / Viton

Extended Description Replacement seal often referred to as a Bodok seal. Designed for reuse unlike Nylon, PTFE or Halar washers which are one time use only. These bonded seals are fitted to our standard range of PIN index regulators and yokes. A Viton sealing compound is bonded to a Brass outer ring

Mounting Style In-Line

Non-Wetted Materials Brass

Wetted Materials Viton

Max. Inlet Pressure 200 bar (3000 psi)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

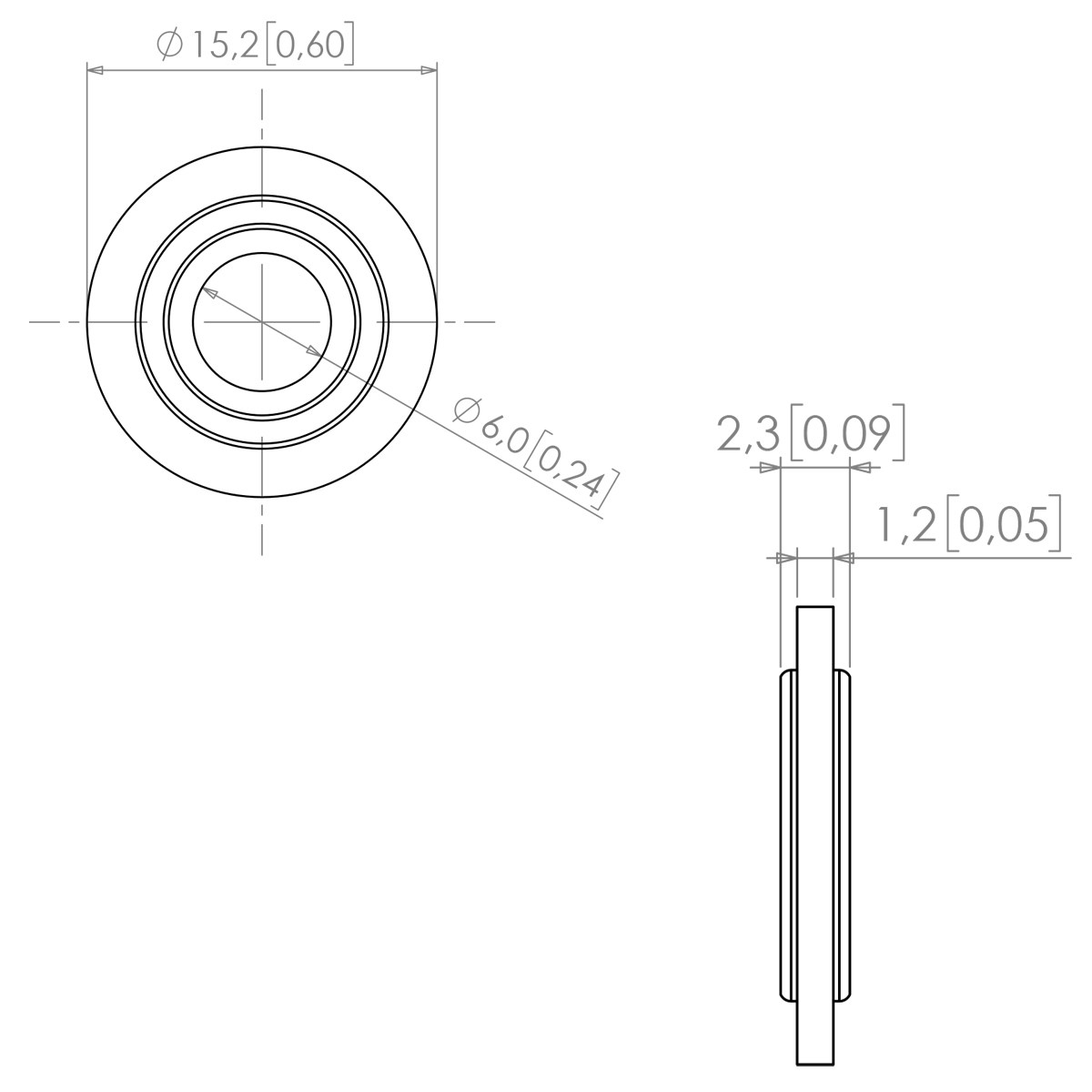

Dimensional Drawing (pdf)

3D model (IGS)
