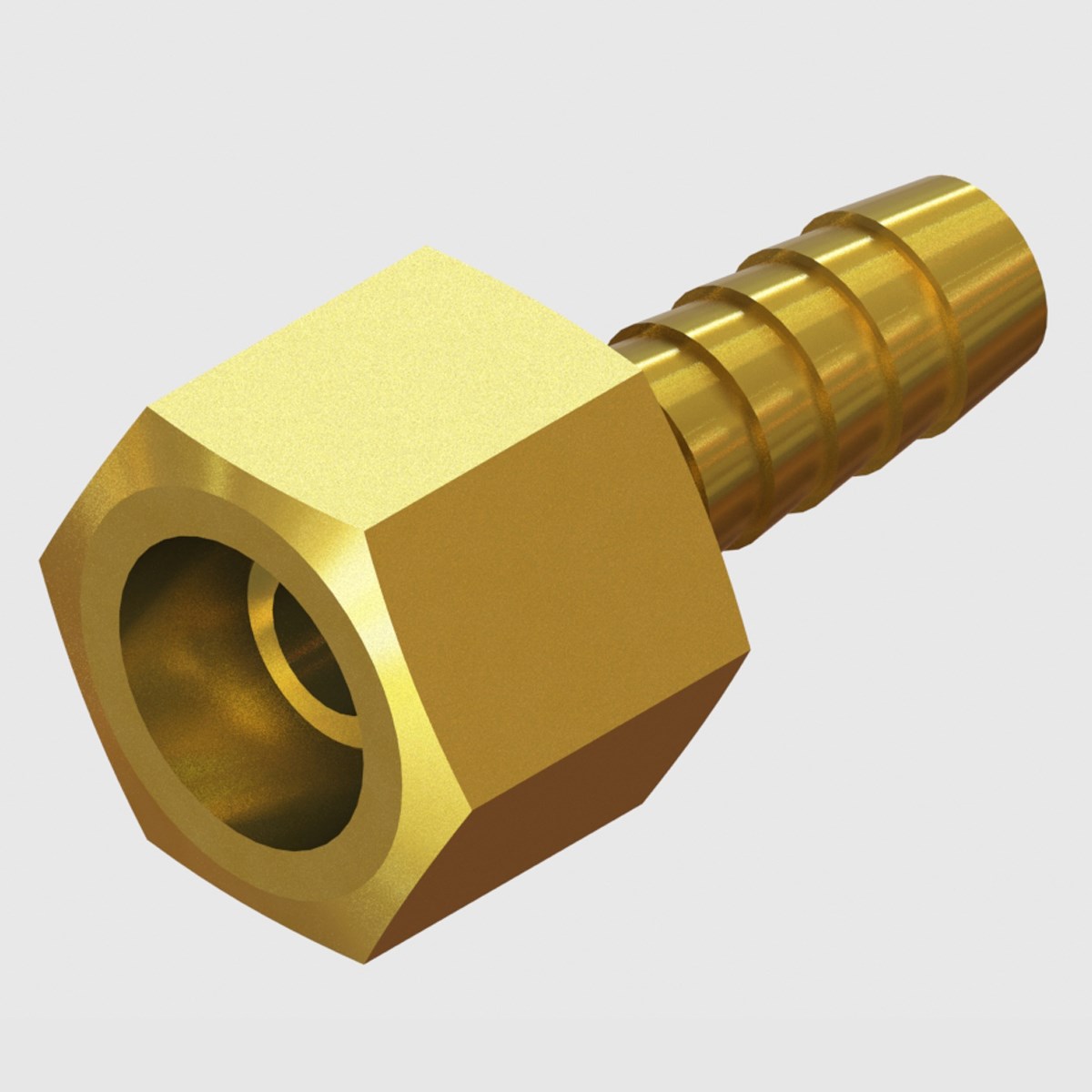

G3/8" Female Nut R/H x 3/8" Hosetail, Brass

G3/8" Female Nut R/H x 3/8" Hosetail, Brass

Name: G3/8" Female Nut R/H x 3/8" Hosetail, Brass
SKU: NTC HT38RH
Price: 7.010000 GBP
Availability: OutOfStock

NTC HT38RH

G3/8" Female Nut R/H x 3/8" Hosetail, Brass

NTC HT38RH

BUY ONLINE

Product Details

Product Code NTC HT38RH

Product Name G3/8" Female Nut R/H x 3/8" Hosetail, Brass

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description G3/8" Female Nut R/H x 3/8" Hosetail, Brass

Extended Description G3/8" right hand female nut and 3/8" hosetail, Brass

Ambient Temperature -20°C to 60°C (-4°F to 140°F)

Mounting Style In-Line

Connection 1 G3/8" Female nut R/H

Connection 2 To suit 9.5 mm (3/8") ID Tube

Recommended Filtration To suit application and media

Media Temperature -20°C to 60°C (-4°F to 140°F)

Non-Wetted Materials Brass

Wetted Materials Brass

Cleanroom Manufactured Controlled Environment

Item Weight 0.0450 (1.59oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data *Maximum working pressure also depends on tube properties. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

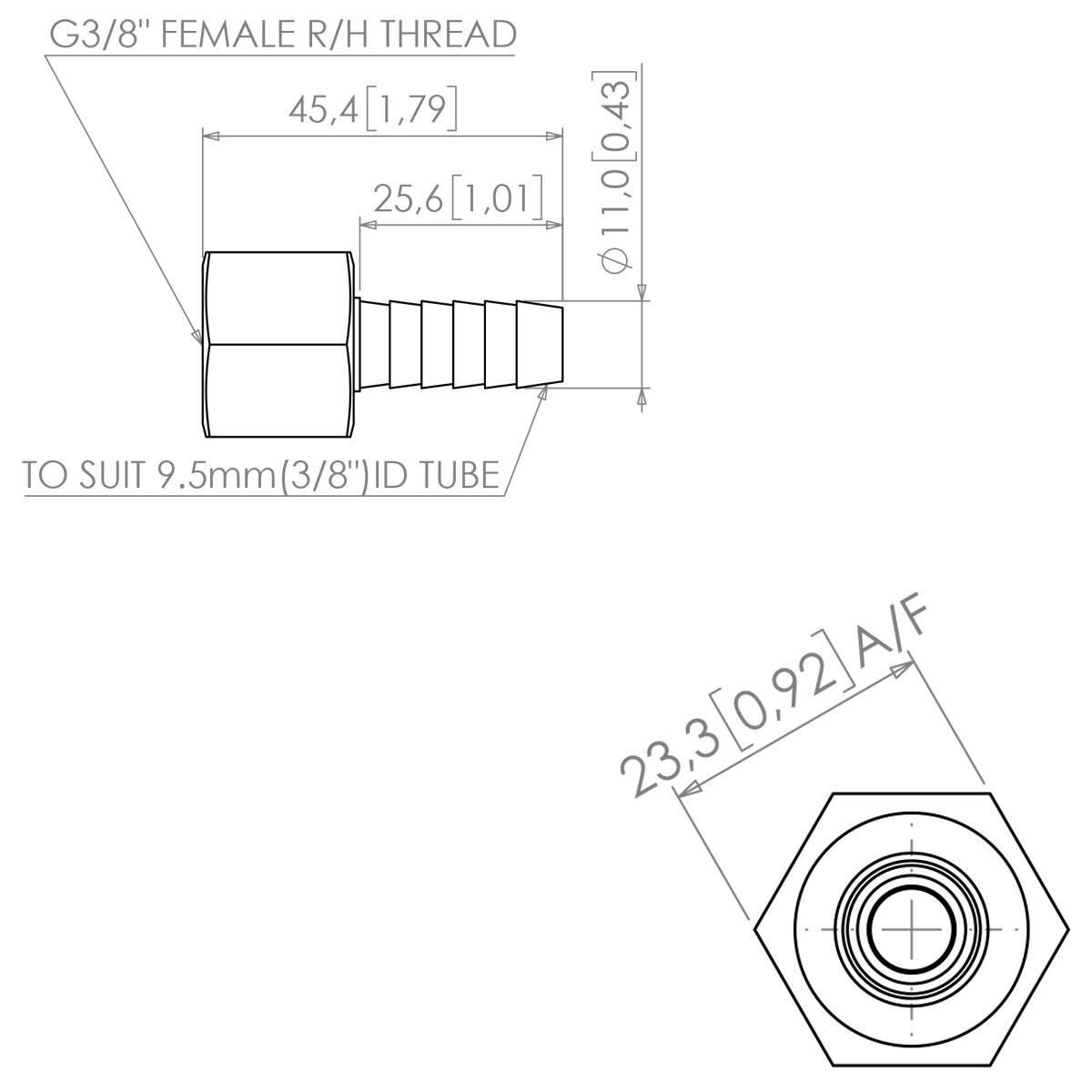

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
