Flow Calibration Control Kit

Flow Calibration Control Kit

E-P-160019

Flow Calibration Control Kit

Flow Calibration Control Unit for Vacuum and Gas Pumps
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-P-160019

Flow Calibration Control Kit

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

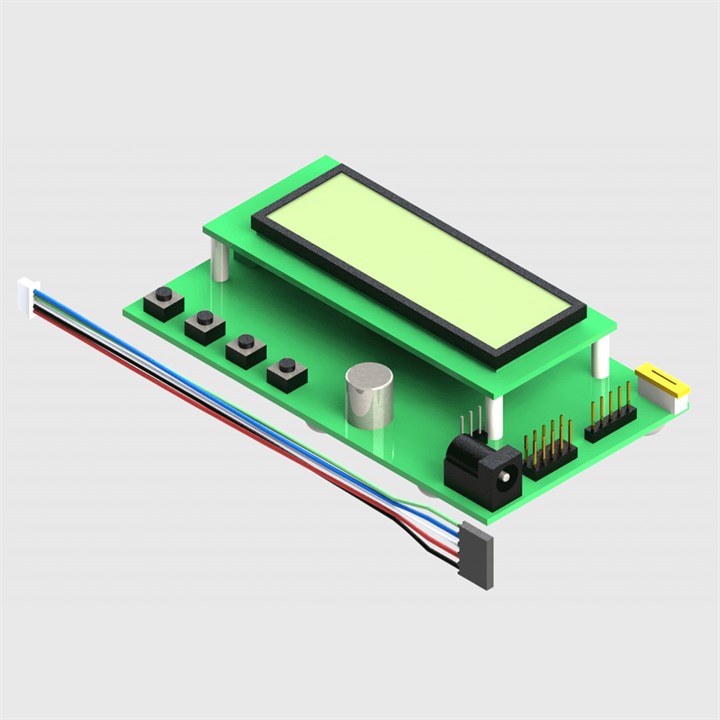

Description Flow Calibration Control Unit for Vacuum and Gas Pumps

Extended Description Flow calibration unit for vacuum and gas pumps designed to allow the user to adjust the flow, reduce noise and power consumption by altering the pumps frequency and storing the setting into the pumps memory

ProductInformationTab1 Temp Value: ProductInformationTab1: Flow Calibration Control Kit

ProductInformationTab2 Temp Value: ProductInformationTab2: Flow Calibration Control Kit

Mounting Style Supported by 5 rubber feet for resting on a flat surface

Operating Temperature 0 to 55 ̊C (32 to 131F)

Supply Voltage 5 to 24V DC to match pump being used. Supplied with a 5 to 12V DC power supply

Supply Connection DC Power Jack 2.1 mm Centre pin +

Item Weight 61g (2.15oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Benefits with using the flow calibration unit, easy calibration of pump flow, shorter R & D time. Reduced power consumption with correct flow calibration. Reduced pump noise. Unit is suitable for pumps with a flex cable but will also be supplied with an adapter to suit wire pumps. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
