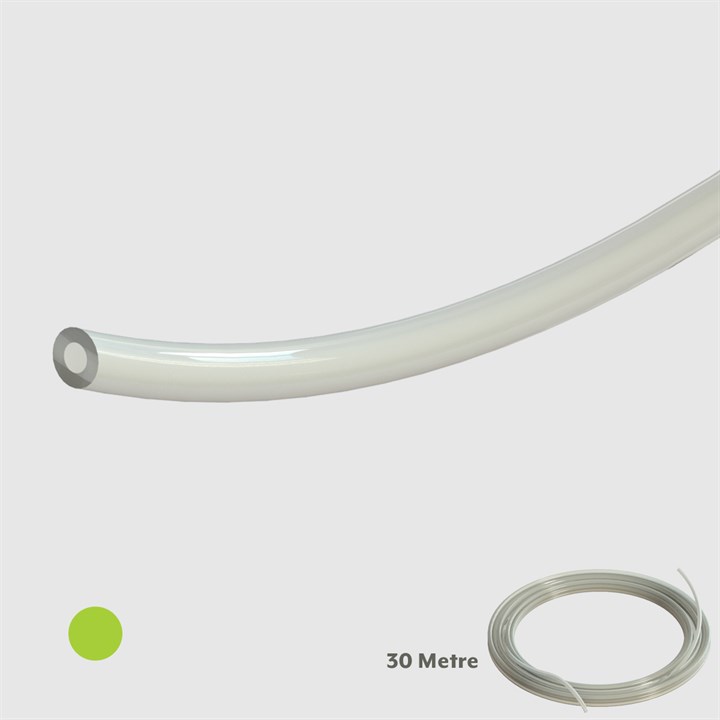

Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M - Compatible with Green Dot Fittings

Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M - Compatible with Green Dot Fittings

Name: Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M - Compatible with Green Dot Fittings
SKU: E-T-160028
Price: 40.470000 GBP
Availability: OutOfStock

E-T-160028

Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M - Compatible with Green Dot Fittings

E-T-160028

Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M

Compatible green dot fittings

BUY ONLINE

Product Details

Product Code E-T-160028

Product Name Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M - Compatible with Green Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Natural Nylon Tubing, 78 Rockwell R, 0.071" (1.8mm) ID x 0.118" (3.0mm) OD - 30M

Extended Description 30 Metre coil (100 Feet) of UV stabilised natural colour Nylon tubing with an internal diameter of 0.071" (1.8mm), an outside diameter of 0.118" (3.0mm) and a wall thickness of 0.024" (0.6mm) suitable for use with push-in and compression style fittings

Non-Wetted Materials Nylon

Wetted Materials Nylon

Cleanroom Manufactured Uncontrolled environment

Temperature Range -51°C to 93°C (-60°F to 200°F)

Working Pressure 4:1 Safety Factor. Vacuum to 28.27 bar (410 psi) at 25°C (75°F) / Vacuum to 16.55 bar (240 psi) at 65°C (150°F)

Operating Range at 25⁰C Vacuum to 28.27 bar (410 psi) at 25°C (75°F)

Diameter Tolerance ±0.004" (±0.10mm) ID/OD

Operating Range at 65⁰C Vacuum to 16.55 bar (240 psi) at 65°C (150°F)

Item Weight 0.15kg (150 gram)

ROHS Compliant Yes

Regulatory Information Meets UL 94HB Testing requirements, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free. UV stabilised

Durometer 78 Rockwell R

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
