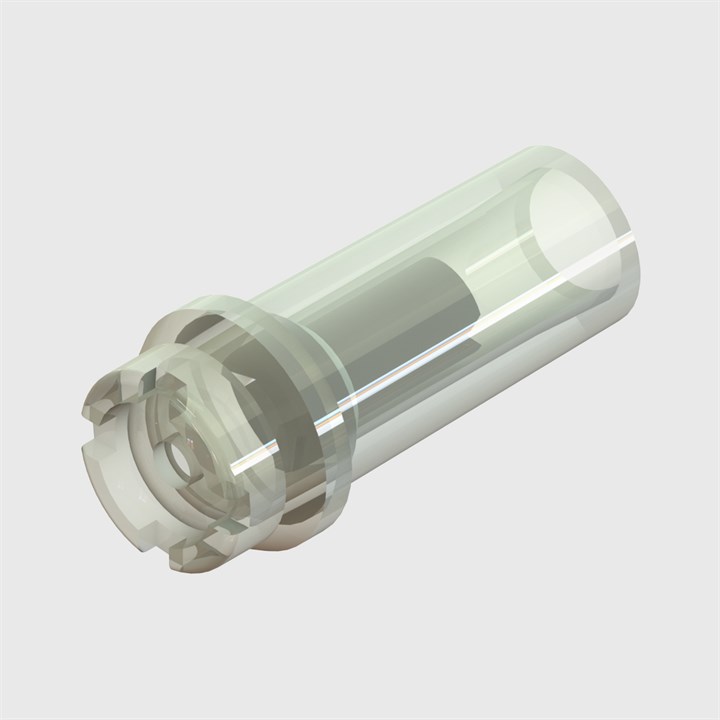

Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube

Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube

E-C-190041

Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube

Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-C-190041

Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Clear Polypropylene Catheter Bodied Check Valve, Luer Syringe Port to 8.6mm (0.339") OD Barbed Stem for 6.4mm (1/4") ID Tube

Extended Description A Clear Polypropylene bodied check valve for use with 1/4" ID tubing. Designed to be used as a dependable in-line check valve or a directional flow control valve for liquid and air.

Ambient Temperature 0°C – 121°C (32°F – 250°F)

Mounting Style In-line

Connection 1 Luer Syringe Port

Connection 2 8.6mm (0.339”) OD Barbed Stem for 6.35mm (1/4”) ID Tube

Media Temperature 0°C – 121°C (32°F – 250°F)

Wetted Materials Clear Polypropylene, Silicone

Cleanroom Manufactured No

Max. Inlet Pressure 2.07 bar (30 psi)

Cracking Pressure Valve Opened by Luer Connection

Item Weight 0.0005Kg (0.5g)

ROHS Compliant No

CE Mark No

REACH Compliant Yes

Other Technical Data All materials are Gamma resistant, DEHP-free and Latex-free. Product can be sterilised by ETO and Gamma based on raw material manufacturers data. Luer fittings are compatible with ANSI/HIMA MD70.1-83 & ISO 594. The valves allow multiple usages and require no cap. Valve stems and bodies will mate securely with all standard Luer syringes and Luer connectors. The swabable valve is a medical component supplied bulk, non-sterileFor manufacturing processing or re-packing. Customer is responsibleFor the qualification/verification of the product in their final application. *When valve is opened by Luer connector, this needs to be confirmed by your specific application. ▲When valve is closed.For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
