MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure

MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure

Name: MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure
SKU: E-C-200002
Price: 0.890000 GBP
Availability: OutOfStock

E-C-200002

MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure

E-C-200002

BUY ONLINE

Product Details

Product Code E-C-200002

Product Name MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description MABS Luer Check Valve with TPE Taper, Silicone Disc, 4.1mm Bond-In Port to Male Luer Lock, 0.2 Bar Cracking Pressure

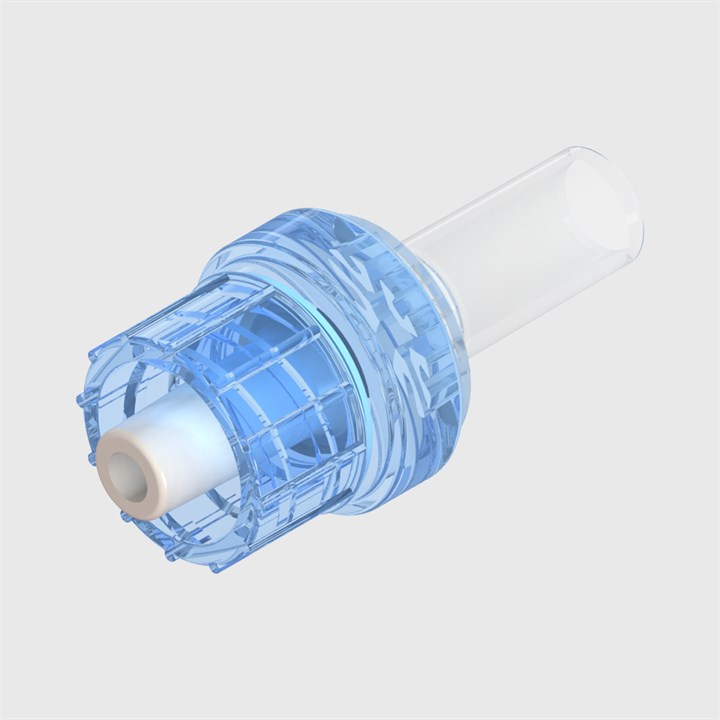

Extended Description Transparent blue and clear MABS body check valve with TPE taper and Silicone disc. Connection from 4.1mm ID bond-in port inlet to male luer lock outlet. 0.2 bar (2.9 psi) cracking pressure, designed for easy disconnection

Mounting Style In-Line

Connection 1 4.1mm Bond-in Port

Connection 2 Male Luer Lock

Non-Wetted Materials MABS

Wetted Materials MABS, Silicone, TPE

Cracking Pressure 0.2 bar

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict Mineral Compliant. DEHP Free. Animal derivative Free. Human derivative Free. BPA Free. Phthalate Free. Latex Free. Compatible with EtO(Ethylene Oxide) sterilisation, but is not compatible with autoclave or gamma sterilisation. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
