Product Information
Downloads
Sample request
Product Enquiry

Description Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

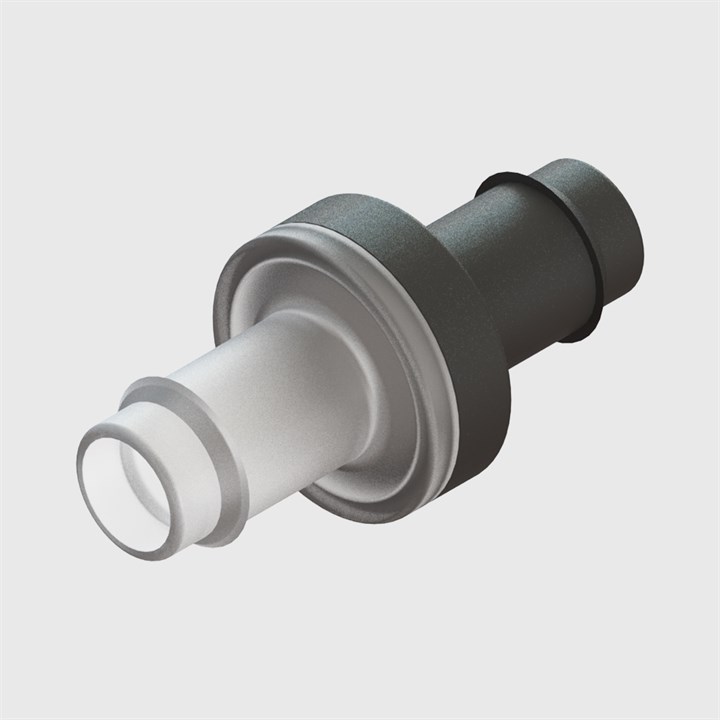

Extended Description Nylon bodied and Fluorosilicone diaphragm check valve with barbs to suit 3/8" (9.5mm) ID tube. Cracking pressure of less than 0.1 psi

Ambient Temperature 82 °C (180°F)

Mounting Style In-Line

Connection 1 To suit 3/8" (9.5mm) ID Tube

Connection 2 To suit 3/8" (9.5mm) ID Tube

Media Temperature 82 °C (180°F)

Non-Wetted Materials Nylon

Wetted Materials Nylon, Fluorosilicone

Max. Inlet Pressure 3.50 Bar (50 psi)

Cracking Pressure <0.1 psi

Item Weight 0.0036Kg (3.6g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
