ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure

ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure

Name: ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure
SKU: E-C-200019
Availability: OutOfStock

E-C-200019

ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure

E-C-200019

BUY ONLINE

Product Details

Product Code E-C-200019

Product Name ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description ABS/Fluorosilicone Bodied Duckbill Check Valve, 1.6mm (1/16"), ≤25 Mbar Cracking Pressure

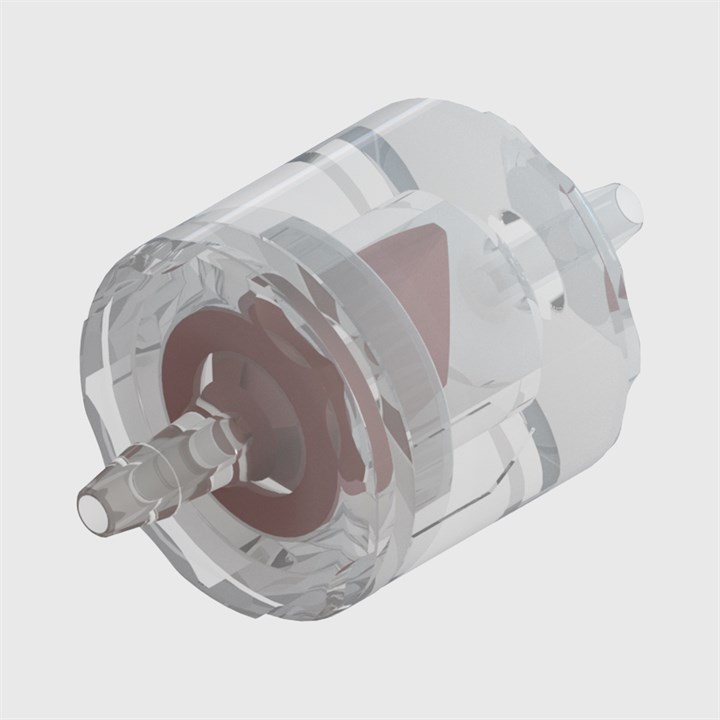

Extended Description ABS body duckbill check valve with Fluorosilicone, 1/16" barb inlet and outlet, ≤ 25 mbar cracking pressure

Mounting Style In-line

Connection 1 To suit 1.6 mm (1/16") ID Tube

Connection 2 To suit 1.6 mm (1/16") ID Tube

Recommended Filtration To suit application and media used

Non-Wetted Materials ABS

Wetted Materials ABS, Fluorosilicone

Cleanroom Manufactured Class 8 (100,000) cleanroom

Max. Inlet Pressure 3.45 bar (50 psi)

Cracking Pressure ≤ 25 mbar

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict Mineral Compliant. DEHP Free. Animal derivative Free. Human derivative Free. BPA Free. Phthalate Free. Latex Free. Compatible with EtO(Ethylene Oxide) sterilisation, but is not compatible with autoclave or gamma sterilisation. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
