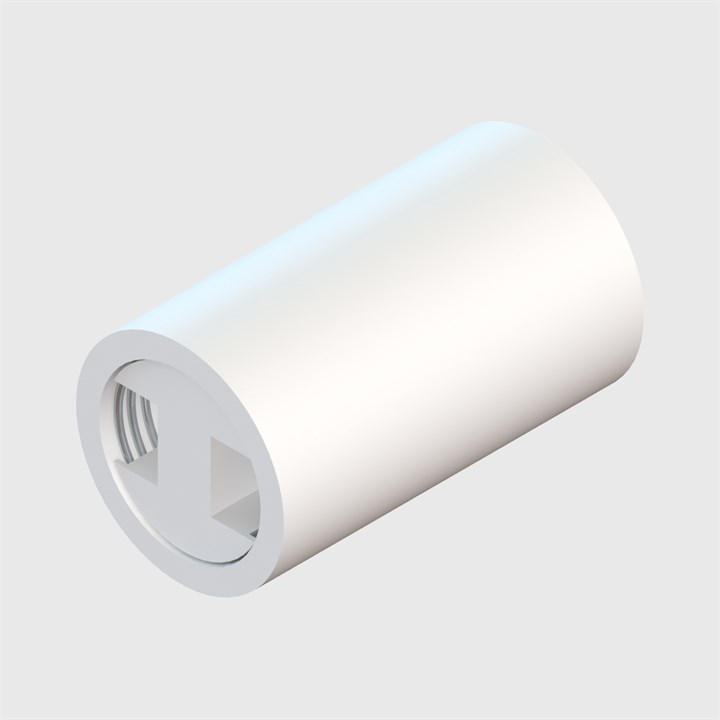

3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure

3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure

Name: 3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure
SKU: E-C-190046
Price: 8.610000 GBP
Availability: OutOfStock

E-C-190046

3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure

E-C-190046

BUY ONLINE

Product Details

Product Code E-C-190046

Product Name 3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description 3/8" OD Cartridge Check Valve, Nylon Body, Buna seal, 0.5 psi Cracking Pressure

Extended Description 3/8" OD Nylon body cartridge check valve complete with Buna-N seal and 302 Stainless Steel spring. Cracking pressure 0.5 psi, orifice size 0.200"

Mounting Style In-Line

Non-Wetted Materials Nylon

Wetted Materials Nylon, Buna-N, 302 Stainless Steel

Cleanroom Manufactured No

Cracking Pressure 0.5 psi

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Compatible with air or liquid. This cartridge ideally use for low pressure manifold or tubing application. Cracking pressure tolerance is 10-20%. Flow Coefficient (Cv) 1.10. Custom design available. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
