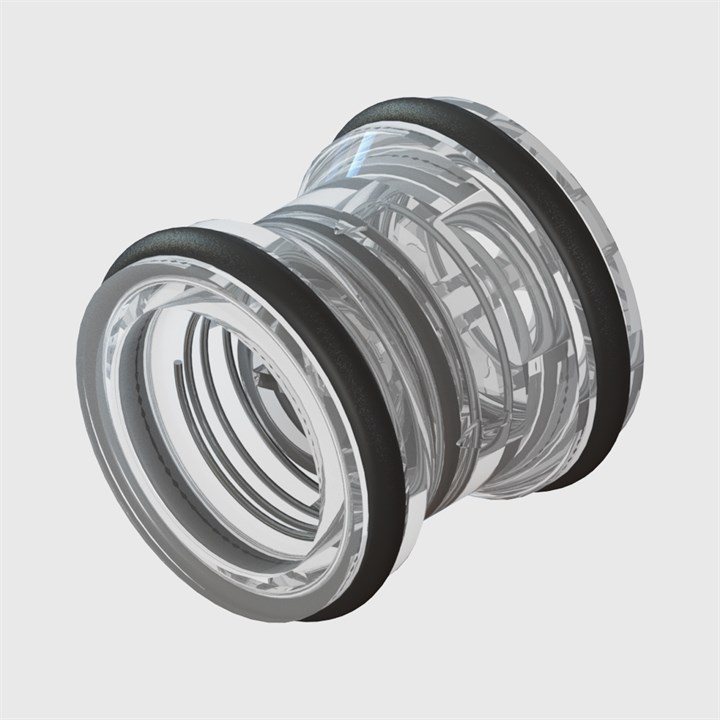

5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure

5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure

E-CC58-PP-N3

5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure

5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-CC58-PP-N3

5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 5/8" OD Cartridge for Modular Check Valve, Polypropylene, Nitrile Seals, 3 psi Cracking Pressure

Extended Description This cartridge is generally used in pneumatic circuit which requires free flow in one direction, indicated with an arrow on the cartridge, and no flow in the opposite direction.

Ambient Temperature 5 - 50 °C (41 - 122°F)

Mounting Style In-Line

Media Temperature 5 - 50 °C (41 - 122°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene, Buna-N, 302 Stainless Steel

Cleanroom Manufactured No

Cracking Pressure 3 psi

ROHS Compliant Yes

Regulatory Information FDA CFR21

REACH Compliant Yes

Other Technical Data Compatible with clean air. Easy to use cartridge for manifold assembly. Mixed imperial and metric combinations. Easy to take apart for R&D purposes. Multiple spring and o-ring options. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)

Glossary of terms

To request a sample for this product, please fill out the form.
