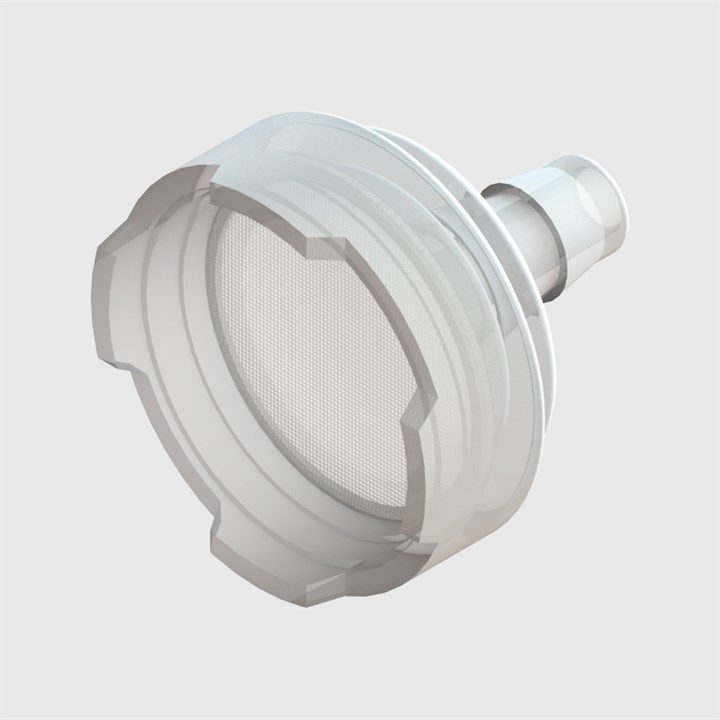

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube

Name: Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube
SKU: E-M-180007
Price: 3.140000 GBP
Availability: InStock

E-M-180007

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube

E-M-180007

BUY ONLINE

Product Details

Product Code E-M-180007

Product Name Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/8" (3.2mm) ID Tube

Extended Description A suction filter with Clear Polypropylene body, 150 micron Polypropylene mesh and barb to suit 1/8" (3.2mm) ID tube

Mounting Style In-line

Connection 1 To suit 1/8" (3.2mm) ID Tube

Recommended Filtration Integrated with 150 micron Polypropylene mesh

Media Temperature 60°C (140°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene

Cleanroom Manufactured No

Max. Inlet Pressure 8.62 bar (125 psi)

Item Weight 0.0017 (0.06oz)

ROHS Compliant Yes

Regulatory Information No

REACH Compliant Yes

Other Technical Data Compatible with air, gases and fluids. Max temperature is dependent on input pressure. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
