Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube

Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube

Name: Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube
SKU: E-M-240012
Price: 2.930800 GBP
Availability: InStock

E-M-240012

Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube

E-M-240012

BUY ONLINE

Product Details

Product Code E-M-240012

Product Name Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description Black Nylon In-Line Filter, 55 to 74 Micron 304 Stainless Steel Mesh, 3/16" (4.8mm) ID Tube

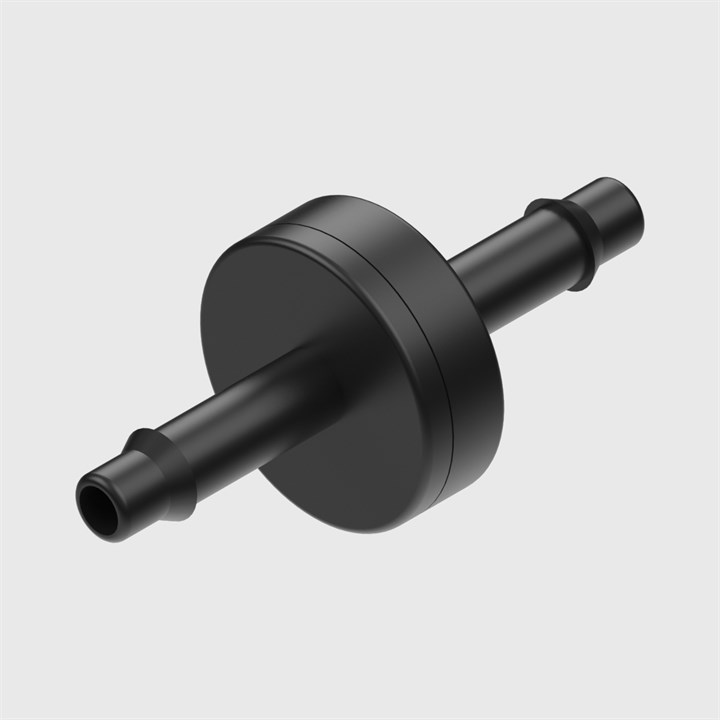

Extended Description This in-line filter provides dual stage filtration (55 micron nominal, 74 micron absolute) for efficient particle removal. Made from corrosion resistant black nylon and 304 stainless steel mesh, it suits a wide range of applications, from inkjet, automotive to chemical processing

Mounting Style In-line

Connection 1 To suit 3/16" (4.8mm) ID Tube

Connection 2 To suit 3/16" (4.8mm) ID Tube

Recommended Filtration 55 to 74 Micron

Media Temperature 82°C (180°F)

Non-Wetted Materials Nylon

Wetted Materials Nylon, 304 Stainless Steel

Item Weight 0.0036kg (3.6g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
