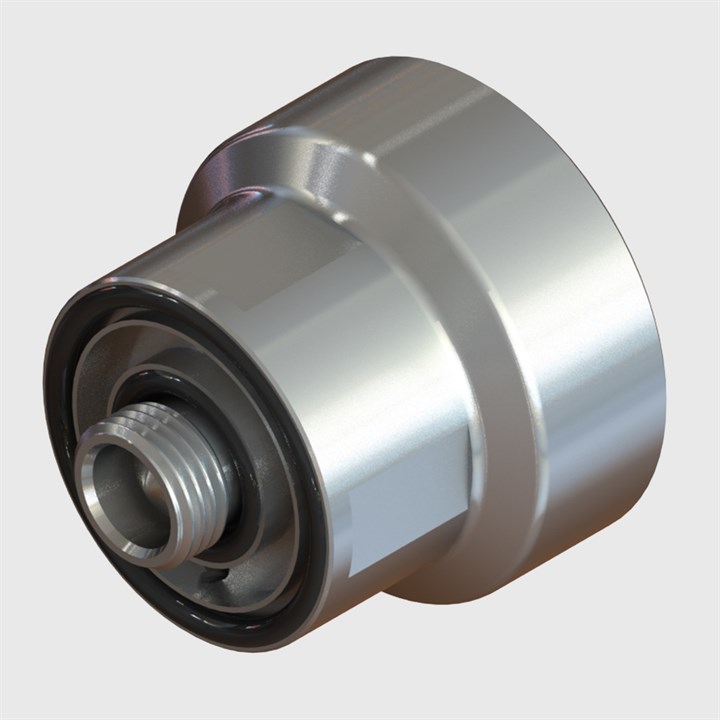

1/8 BSPP Stainless Steel Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.

1/8 BSPP Stainless Steel Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.

ENR-20-MMG-SS-V-H-C

1/8 BSPP Stainless Steel Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.

1/8 BSPP Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

ENR-20-MMG-SS-V-H-C

1/8 BSPP Stainless Steel Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 1/8 BSPP Precision Miniature Pressure Regulator, Non relieving, Non-bleed. Manifold Mount.

Extended Description Miniature precision stainless steel pressure regulator. Non relieving and non bleed for precision control air and medical gases. Compact pressure regulator with very low pressure hysteresis, and low pressure droop.

Ambient Temperature 0ºC to 60ºC (32ºF to +140ºF) Air supply must be dry enough to avoid ice formation below 2°C.

Mounting Style Manifold mount

Connection 1 Manifold Mounted - 1/8 BSPP

Connection 2 See manifold interface requirements

Recommended Filtration 5 micron

Media Temperature 0ºC to 60ºC (32ºF to +140ºF) Air supply must be dry enough to avoid ice formation below 2°C.

Non-Wetted Materials Stainless steel 316 and 303, Aluminium Bronze

Wetted Materials Stainless steel 316, FKM, PVDF

Cleanroom Manufactured N/A

Max. Inlet Pressure 8 bar (116 psi)

Max pressure hysteresis at 20°C 0.03 bar (0.45 psi)

Effect of Supply Pressure Variation <0.01 bar outlet pressure per 0.35 bar change in inlet pressure

Flow Capacity 60 L/Min @ 6 bar supply, 1.0 bar outlet pressure set point

Item Weight 82g

ROHS Compliant Yes

REACH Compliant N/A

Other Technical Data Our latest non-relieving, non-bleed miniature pressure regulator offers precision regulation of pressure where control of compressed air or medical gases is required. This component offers precision, reliable performance with low pressure droop and vey low pressure hysteresis. Designed and manufactured in the UK, Eox are delighted to offer this component to an international audience of med-tech and life science equipment manufacturers. This new addition to our range is designed for an outlet pressure range of 0.05 - 2.00 bar, with a maximum inlet pressure of 8 bar (45 psi). This component is available as standard or may be customised for your application, oxygen clean on request - For further information please contact us on +44 (0)2392 266031.

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
