Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing

Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing

E-F-210125

Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing

Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing
Compatible blue dot tubing
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-210125

Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Animal Free Polypropylene Equal Panel Mount Connector, 1/16" (1.6mm) ID Tube and 10-32 UNF Thread - Compatible With Blue Dot Tubing

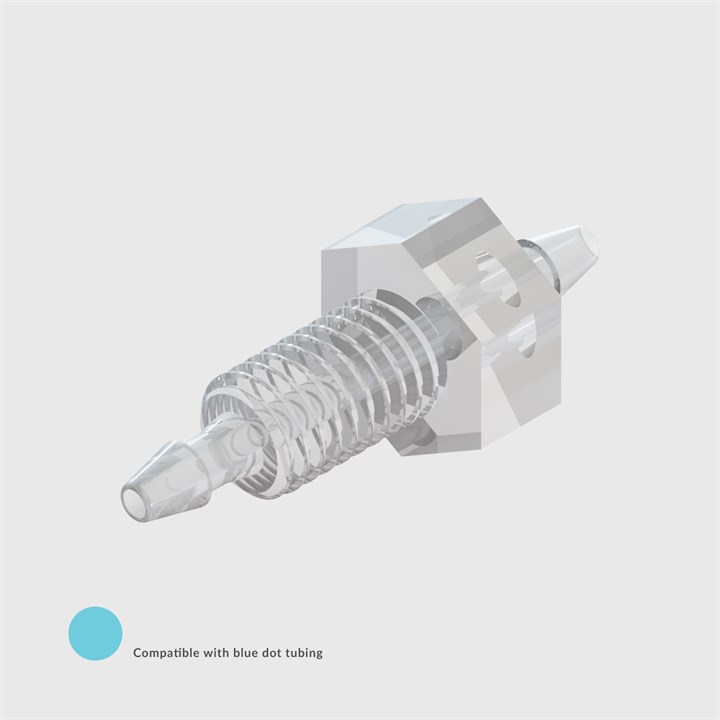

Extended Description An Animal Free Polypropylene body equal panel mount connector with barbs to suit 1/16" (1.6mm) ID tube and 10-32 UNF thread

Mounting Style Panel Mount

Connection 1 To suit 1/16" (1.6mm) ID Tube

Connection 2 To suit 1/16" (1.6mm) ID Tube

Media Temperature -17 to 43°C (0°F to 110°F)

Non-Wetted Materials Animal Free Polypropylene

Wetted Materials Animal Free Polypropylene

Item Weight 0.0002kg (0.20g)

ROHS Compliant Yes

Regulatory Information FDA 21 CFR 177.1520(a)(3)(i) and (c)3.1a, USP Class VI, Califonia Prop.65

REACH Compliant Yes

Other Technical Data Latex Free. PVC Free. Compatible with gamma sterilisation method (25 to 50 kGy), though colour may change over time with repeated exposure. It is also compatible with Ethylene Oxide (EtO) sterilisation method and autoclave sterilisation method up to 121°C (250°F). For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
