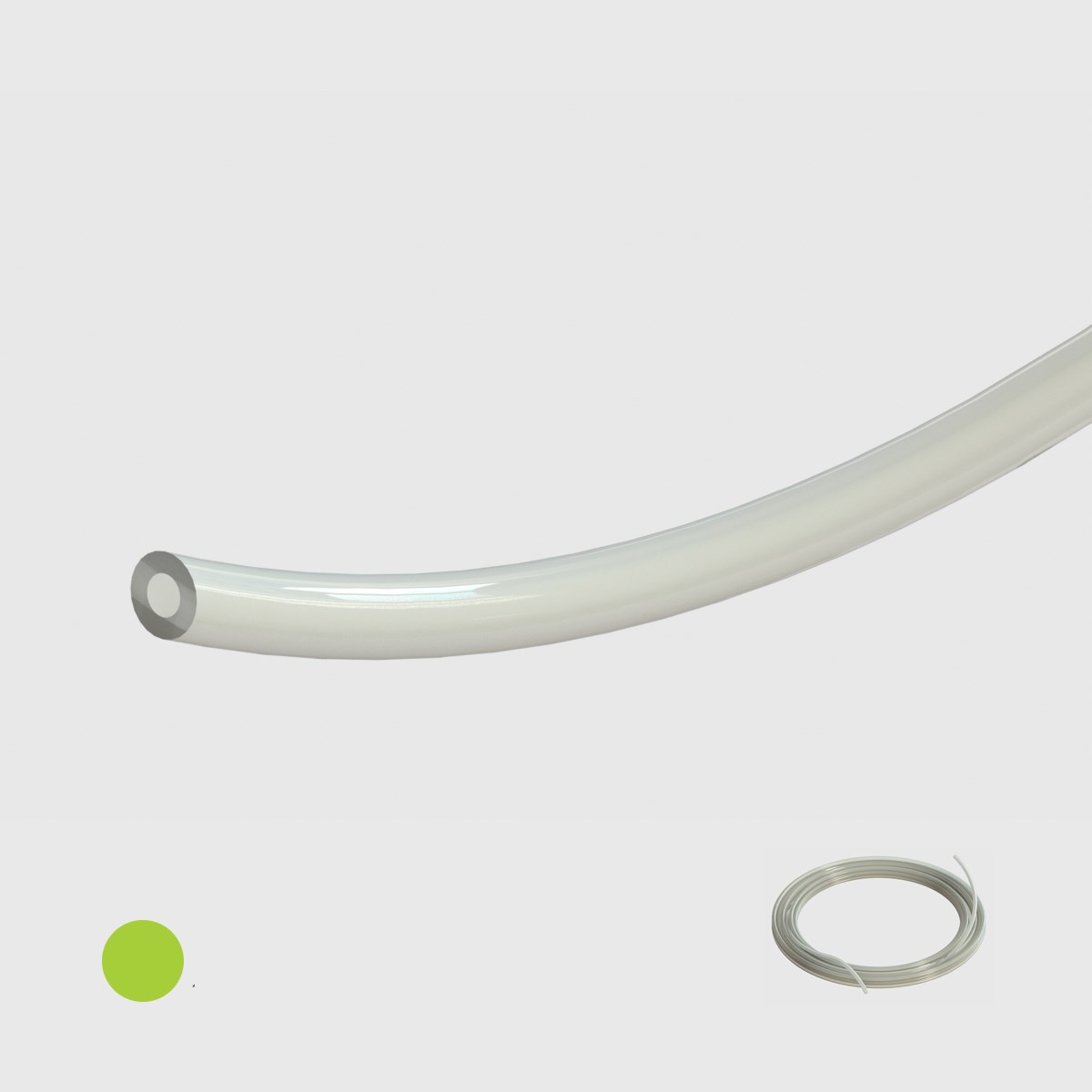

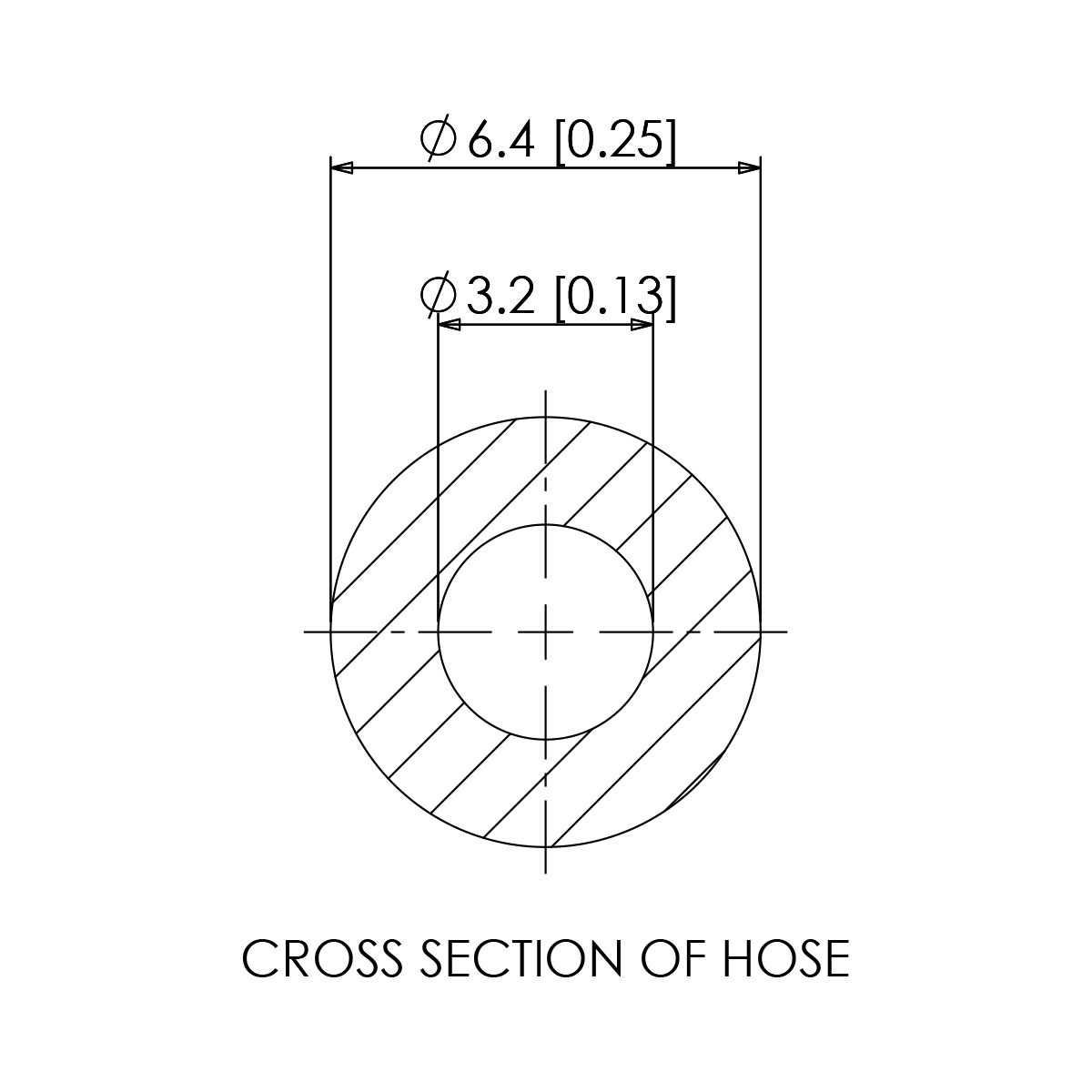

Description Natural Fluorinated Ethylene Propylene (FEP) Tubing, 57 Shore D, 1/8" ID x 1/4" OD - 30M - Compatible with Green Dot Fittings

Extended Description Fluorinated Ethylene Propylene (FEP) tubing is compatible with both push-in style fittings and compression fittings, ensuring a secure and reliable connection in a variety of systems. Fluorinated Ethylene Propylene (FEP) tubing is highly resistant to chemicals, making it ideal for handling aggressive solvents, acids, and bases. It can also be used with gases, compressed air, and various fluids in both low and high-temperature environments. Common applications include chemical processing, laboratory equipment, food and beverage processing, semiconductor manufacturing, and medical devices. Its non-stick surface and excellent transparency make it perfect for fluid transfer and monitoring in these applications

Non-Wetted Materials Fluorinated Ethylene Propylene (FEP)

Wetted Materials Fluorinated Ethylene Propylene (FEP)

Temperature Range -73 to 204°C (0 to 160°F)

Working Pressure 5:1 Safety Factor

Diameter Tolerance ±0.005" (0.127mm) ID/OD

Item Weight 1.5422kg (1542.2g)

ROHS Compliant Yes

Regulatory Information FDA Food Contact, UL 94 V0, USP Class VI, ASTM D 3296-03

REACH Compliant Yes

Other Technical Data This high-performance, 100% virgin-grade resin is engineered to resist stress cracking, offering excellent thermal stability and low permeability. It features strong UV resistance, is non-flammable or self-extinguishing, and provides superior electrical insulation. Additionally, the resin is chemically inert, making it resistant to most industrial chemicals and solvents. For further information please contact us on +44 (0)2392 266031

Durometer 57 Shore D

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
