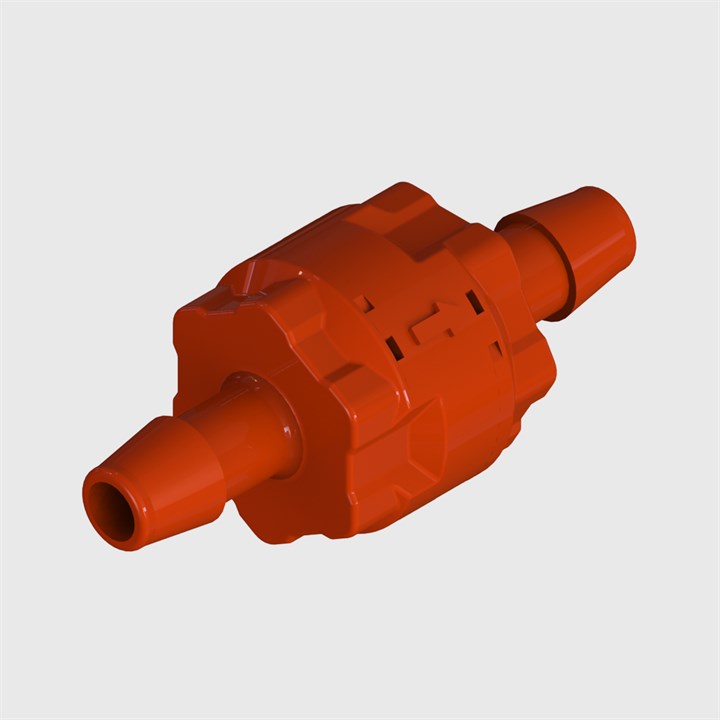

Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure

Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure

E-C58-PG-1ER1ER-N3

Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure

Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-C58-PG-1ER1ER-N3

Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Modular Red Check Valve, 1/4" Barb Input and Output, Nitrile Seals, 3 psi Cracking Pressure

Extended Description This check valve is generally used in pneumatic circuit which requires free flow in one direction, indicated with an arrow on the check valve, and no flow in the opposite direction

Ambient Temperature 5ºC - 50ºC (41 - 122° F)

Mounting Style In-Line

Connection 1 To suit 1/4" (6.4mm) ID Tube

Connection 2 To suit 1/4" (6.4mm) ID Tube

Media Temperature 5ºC - 50ºC (41 - 122° F)

Non-Wetted Materials Glass Filled Polypropylene

Wetted Materials Glass Filled Polypropylene, Polypropylene, Buna-N, 302 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure 7 bar 100 psi

Cracking Pressure 3 psi

Item Weight 0.005 kg

ROHS Compliant Yes

Regulatory Information FDA 21 CFR 177.1520 and 177.1500

REACH Compliant Yes

Other Technical Data Compatible with clean air. Modular assembly allows multiple combinations. Single barb design to improve seal and improve clamping. Unique push-in range. Female thread 1/8 BSPP fittings. Locking clip to prevent accidental disassembly. Easy to use cartridge for manifold assembly. Mixed imperial and metric combinations. Easy to take apart for R&D purposes. Multiple spring options to accommodate different cracking pressures available, 316 Stainless Steel spring available. For further information please contact us on +44 (0)2392 266032

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

Additional download

3D model (IGS)

Glossary of terms
