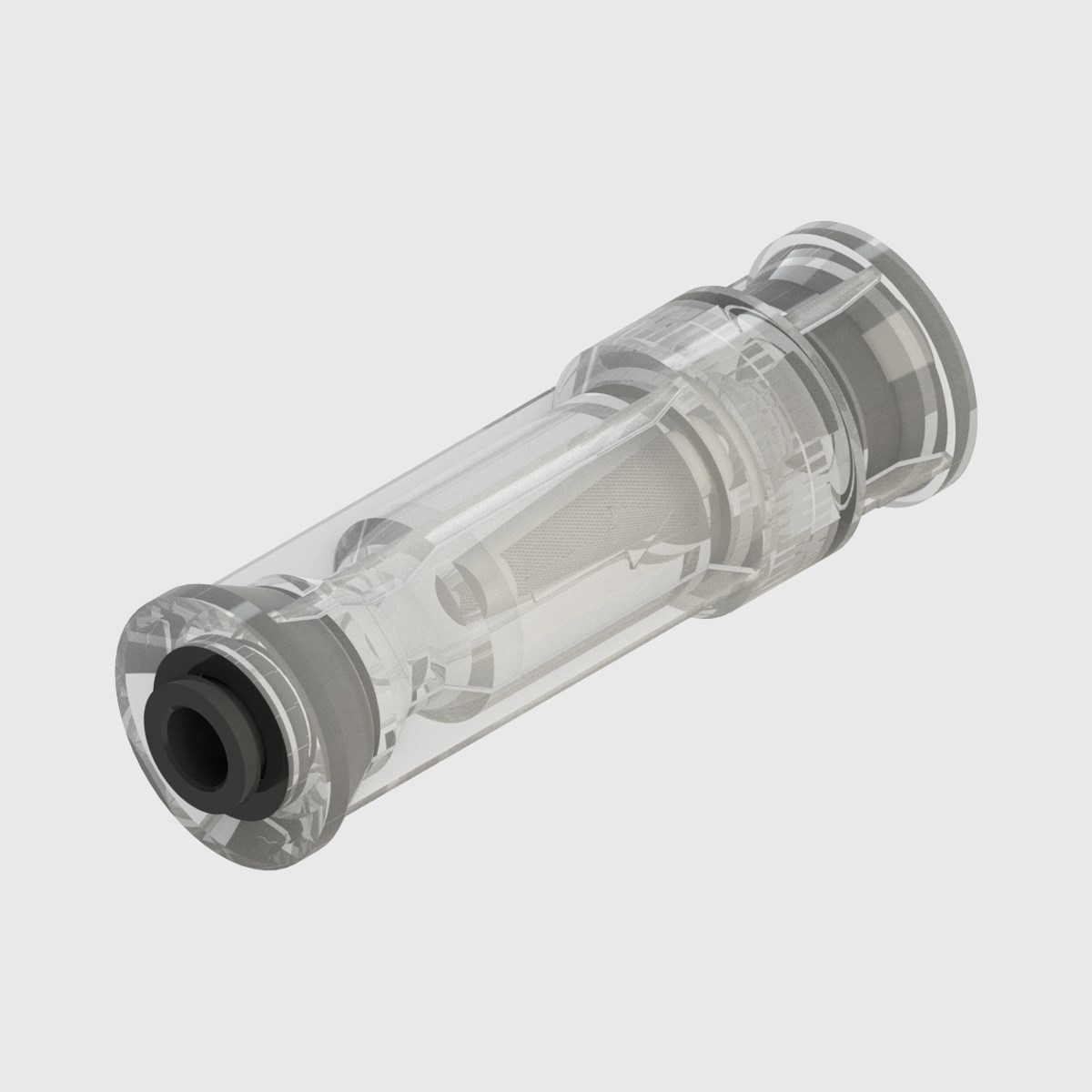

Description PET Disposable Filter, Buna-N Seal, 65 Micron Polyester Mesh Nylon Frame Element, 6.0mm OD Push-In Fitting
Extended Description An in-line disposable filter with push-in ports for 6.0mm OD tube comprising of a Clear PET (polyethylene terephthalate) body and colour coded Polyester filter with a 65 micron density
Ambient Temperature 0 - 85 °C (32 - 185°F)
Mounting Style In-Line
Connection 1 To suit 6 mm OD Tube
Connection 2 To suit 6 mm OD Tube
Recommended Filtration 65 μm
Media Temperature 0 - 85 °C (32 - 185°F)
Non-Wetted Materials PET, Acetal
Wetted Materials PET, Buna-N, Acetal, Nylon, Polyester, Stainless Steel
Cleanroom Manufactured No
Max. Inlet Pressure 6.89 bar (100 psi)
Operating Pressure Vacuum (-29" Hg) to 6.89 Bar (100 psi)
Item Weight 16.2g (0.571oz)
ROHS Compliant Yes
REACH Compliant Yes
Filtration 65 micron, incorporated within restrictor body
Other Technical Data Recommended for use with Nylon, Polyethylene or Polyurethane 95A tubing, can also be used with soft Brass or Copper tube. A serviceable type filter of this range is also available with metric (4mm OD – 12mm OD) and imperial (1/8” OD – 1/2" OD) push-in fitting connections. For further information please contact us on +44 (0)2392 266031
Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
